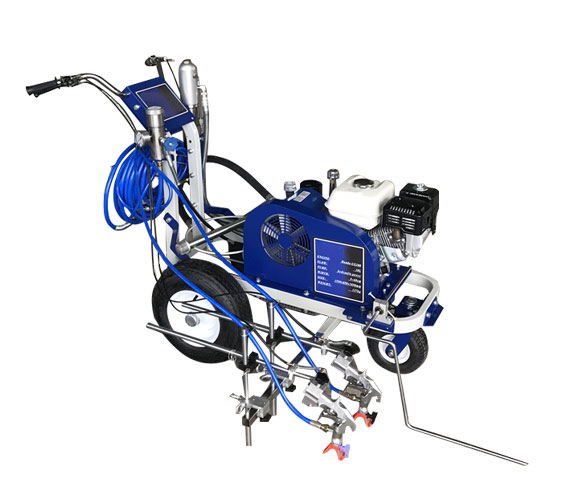

NK-CM5 Plunger Pump Road Marking Machine

NOKIN Plunger Pump Road Marking Machine , with GX200 Honda Engine and Taiwan 10L plunger pump. One or two nozzles are available.

Power: GX200 Honda Engine

Plunger Pump: 10L (Taiwan)

Worepressure: 10-20Mpa

Width of spray: 50--300 mm for single gun; 50-600mm for double gun;

Send Email Chat Now

Share with:

Introduction

Specification

Application

Inquiry

Description:

NOKIN hand-push high-pressure road striping machine is a high-pressure flow type airless sprayer, which uses a gasoline engine to drive a single plunger pump to make the paint become high-pressure in the machine for spraying. The spray gun frame guide rod of the machine adopts a liftable design, which can adjust the spraying speed and spraying width accurately and conveniently, with stable performance and excellent quality. The marking lines are uniform in thickness, with neat edges and corners, with low labor intensity and quick and convenient construction.

Main purpose: NOKIN hand-push type high-pressure road marking paint machine is a special equipment for normal temperature marking construction. Cold spray road marking paint machine is mainly suitable for roads, parking lots, airports, gas stations, company factories, etc., as well as painting straight lines, dotted lines, curves, zebra crossings, text, arrows, graphic signs, etc.

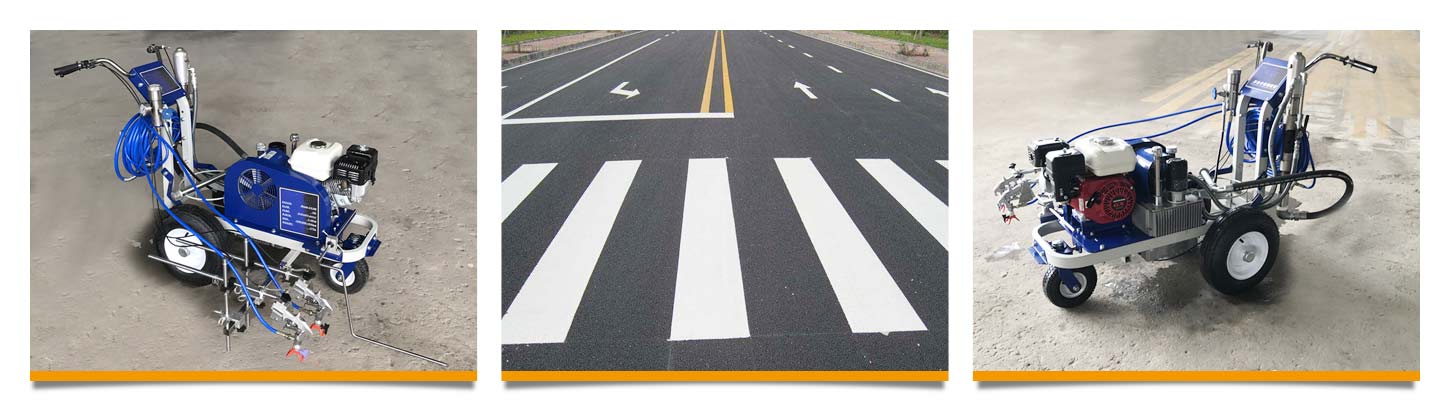

NK-CM5 Plunger Pump Road Marking Machine

Characteristic:

--Brand engine, strong power, stable work.

--Tires of road marking paint machine provide straighter lines when striping on both smooth and uneven surfaces.

--Road striping machine with hand-held spray: In addition to allowing you to freely use the template to paint various symbols, using the hand-held spray can also work on walls, columns and other places other than the ground.

--Color changes and cleanup are very simple.

-- Curve work. Some road paint marking machines also install an extra wheel at the rear, which allows you to work freely along the curved markings.

Specification :

Power:	GX200 Honda Engine
Plunger Pump:	10L(Taiwan)
Oil Pump:	10L (Daikin,Japan)
Spray Gun Quantity :	Single gun or double Guns
Work-pressure:	10-20Mpa
Flow of Spray:	10L/min
Width of Spray:	50-300mm(single gun) 50-600mm(double gun)
Support Nozzle：	Single Dun 427,Double Gun 423/835
Thickness of Spray:	0.2-0.4mm
Overall Dimension:	15508501050mm
Package Dimension:	15708701070mm
Weight:

Operation method of road marking paint machine:

1. Add oil and gasoline before starting the engine (half of the oil dipstick can be added)
2. Adjust the nozzle to the height required for marking before starting the machine.
3. Turn the engine switch to the ON indication, and start the engine by hand.
4. When a bucket of water is filled, first test the machine to test the pressure, put the pipe in the bucket, open the red valve, wait for the gas in the thick pipe to be completely drained, close the red exhaust, and wait for the pressure to increase (check the pressure gauge indication).
5. After about 3-5 minutes, when the pressure on the pressure gauge reaches 200, press the discharge valve twice with the right hand to reduce the pressure, or manually adjust the pressure reducing valve, and then adjust the pressure to 120 and work normally.
6. Mix and stir evenly with water-based scribing paint + thinner when scribing normally.
7. After the work is completed, first stop the machine to relieve pressure, replace with thinner or water, and repeat the previous steps to rinse the machine until it is clean.
