Tunnel road studs
Tunnel road studs
Tunnel road studs
Tunnel road studs

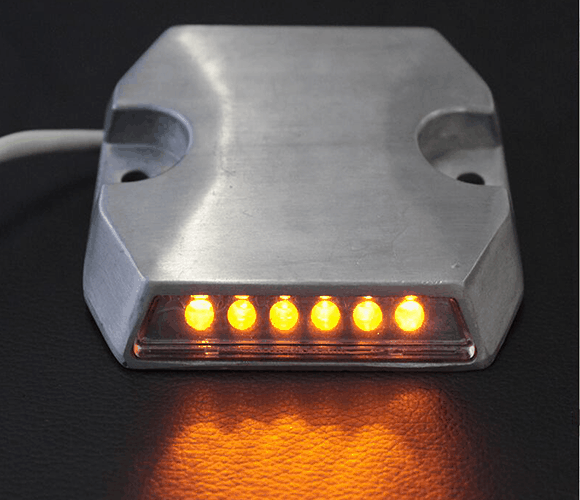

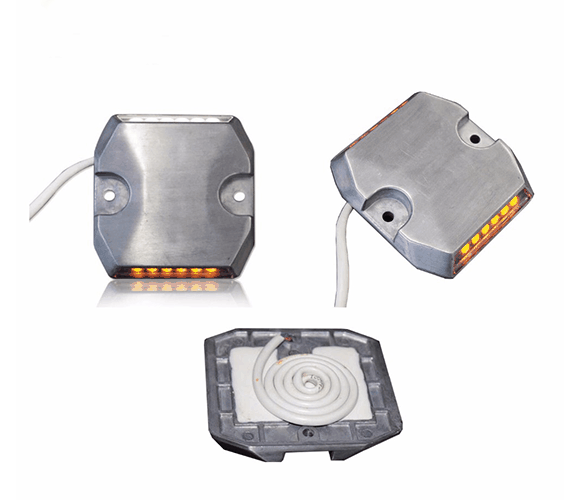

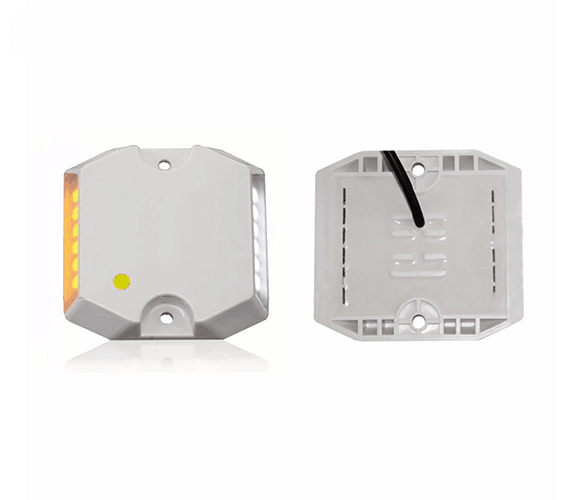

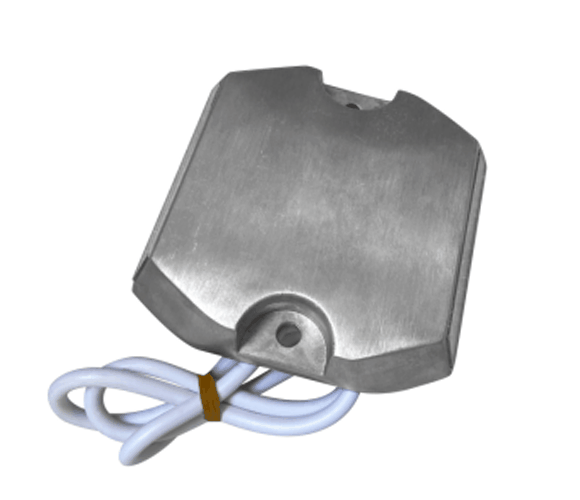

Tunnel Road Studs

Road Stud can help to reduce accident at regional rail crossing, intersection and provide guidance and hazard warning to drivers in darkness and bad weathers.
Body shell: Aluminum alloy
Led quantity: φ 5 Ultra-high bright anti-fog led 6pcs/side ,total 12pcs
Size: 100*105*20mm
LED color :
Waterproof: IP68
Introduction
Specification
Application
Inquiry
Product introduction :
Road Stud also know as cat eyes,can help to reduce accident at regional rail crossing, intersection and provide guidance and hazard warning to drivers in darkness and bad weathers. The solar system of led road markers is conducive for reducing environmental impact and saving costs. With more than 15 years of factory experience, solar pavement markers produced by our company owns competitive solar road marker price and offers more choice to global traffic road safety market and trustworthy partners all over the world.

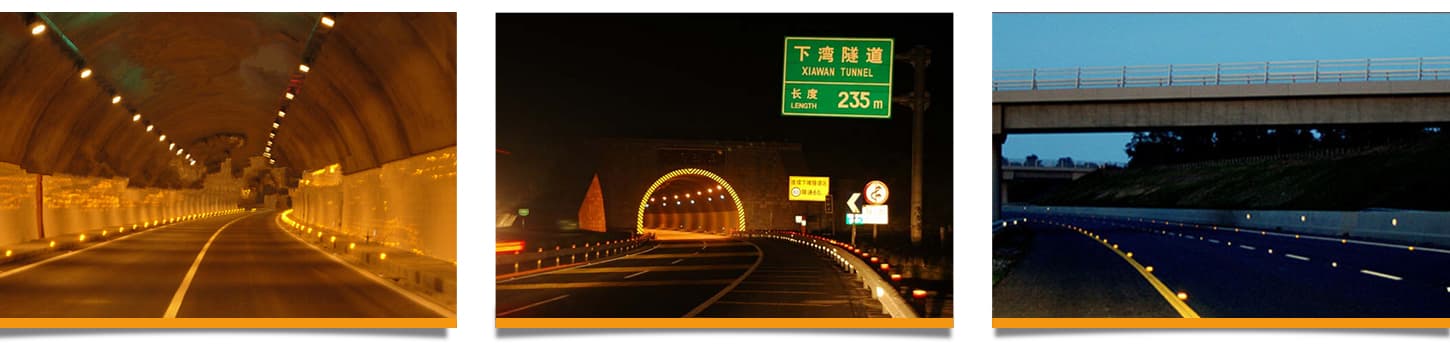

solar-road-stud-CASE

Installation Method Of Tunnel Road Stud:
  • Determine the installation location and distance, clean the road surface, and ensure that the solar road studs are installed on a flat road surface.
  • Clean the bottom of the solar road stud and apply the epoxy glue evenly to the back of the studs.
  • Press the side with the glue on the road, fix the position, wait for the glue to dry.
  • Check within 2 hours of installation to ensure that all studs are not installed incorrectly and are not bent or deformed due to compression.
  • Remove the installation isolation facility within 6-8 hours after the installation of the solar road studs.


The recommended spacing between each solar road studs are as follows:

Highways and Expressways
7 - 8 yards (5 - 6 meters)
Dangerous Entrances and Exits
4 - 5 yards (2 - 3 meters)
Access or Exit ways for Hospitals, Parking Lots, etc.
0.5 - 3 yards (0.5 - 2 meters)

The spacing between of each solar studs also according to your actual application requirements, the above values are for reference only.

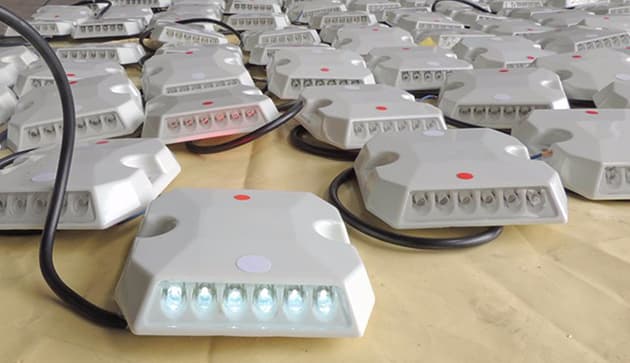

Tunnel Road Studs
Characteristic:
-Super power capacity, Longer life (More than 10 years).
-Working model: Recharging at day and working automatically
-Working period: Full recharging for 180 hours for flashing, 40 hours for steady in fog or rainy days
- Accept OEM/ODM
-Suitable for edge line of road and pavement
-Can work more than 3 years normally
Specification :
Product Name LED flashing aluminum cable tunnel road studs
Body material Aluminum alloy
Working voltage DC24V
Power 0.6W
LED φ 5 Ultra-high bright anti-fog led 6pcs/side ,total 12pcs
LED color Red, Yellow, Green, Blue, White
Frequency 50Hz~60Hz
Flashing mode Blinking or constant
Weight  300g
Water proof IP68
Visual distance >800m
Life span >3years
Load capacity Static withstand pressure >10t
Size 100*105*20mm
Working temperature -40~85 °C
Package 300g
