aluminum embedded in ground solar road stud light

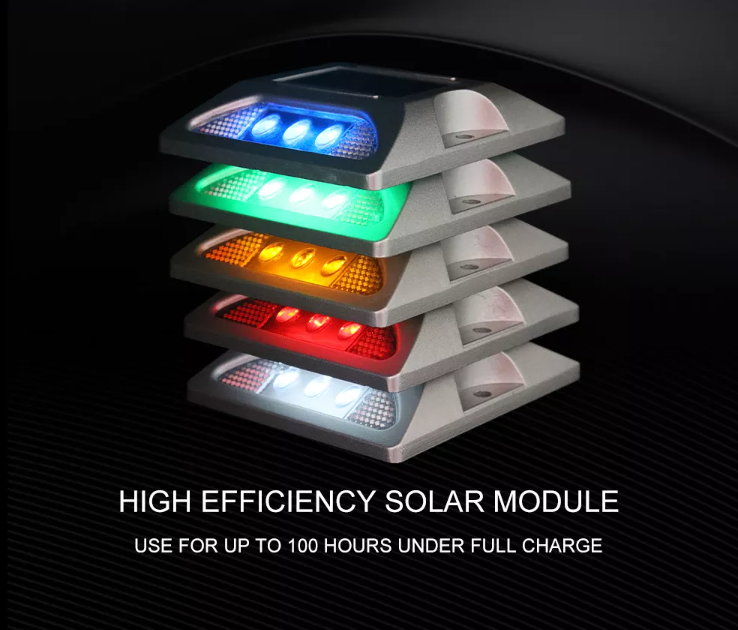

Our LED Solar Powered Road Studs are rated as IP68. They are fully dust-tight and protected from long-term immersion in water. They can withstand up to a specified pressure, and they have limited ingress protection. These lights also come in different colors such as red, green, yellow, white, and blue.
These pieces of lighting equipment signify our commitment to providing quality products to each and every household or business in the Philippines. We continually strive to provide easy access to energy-efficient and environmentally friendly lighting alternatives that are set at reasonably low and affordable prices.
If you need a product recommendation or design inspiration for your projects, you may check out our Completed Lighting Project page for ideas.
For inquiries regarding our products and services, you may also send us an e-mail or contact us through our mobile numbers.

Share:
Content

Working Principle of Solar Road Stud Light

During the day, solar panels absorb sunlight and convert solar energy into electrical energy, which is stored in energy storage devices (batteries or capacitors). At night, the electrical energy in the energy storage devices is automatically converted into light energy (controlled by photoelectric switches) and emitted by LEDs. Bright light outlines the road and induces the driver’s sight. Solar road studs will start automatically to flash when night falls or with the onset of inclement weather. The bright flashing LEDs are highly effective at getting the attention of drivers much earlier than conventional road studs.
The base of this solar road stud is made of cast aluminum, and the surface is made of plastic spraying technology.
The product has a rubber bottom pad to increase the service life
The shell is made of reinforced PC material, which has excellent impact resistance and heat stability.
Loading capacity of more than 30 tons, can be used in the middle of the road.
aluminum embedded in ground solar road stud light
aluminum embedded in ground solar road stud light

SPECIFICATION:

Product Name solar road stud NK-RS-A6B
Body material Hi-pressure Casting Aluminium alloy
Power supply Monocrystalline solar panel 2.5V/0.25W
Battery NI-MH 1.2V/ 600mah or Lithium battery (high-temperature resistance);
LED Ultra bright diameter 5mm 6pcs
LED color Red, Yellow, Green, Blue, White
working mode Recharging at day and working automatically at night
Working hours (1).Blinking:140hours for NI-MH battery;

(2).Constant:40hours for NI-MH battery;

Life span 2 years for NI-MH battery;
Visual distance >800m
Waterproof IP68
Resistance >20T
Size L114*W129*H23mm/122*104*23mm+53mm
Package: 2pc/box;60pcs/ctn
Carton Size:  Without shank: 2pcs/box; 60pcs/ctn; Weight: 21kgs; Carton size:58.5*24.5*18.5cm

(2pcs/box; 60pcs/ctn; Weight: 46.30bs; Carton size:23.03″*9.65″*7.28″)

With shank: 1pcs/box; 45pcs/ctn; Weight: 18.5kgs;  carton size: 56.5*34.8*23.6cm

(1pcs/box; 45pcs/ctn; Weight: 40.79bs; Carton size:22.24″*13.70″*9.29″)

Certificate CE;ROHS;IP68
aluminum embedded in ground solar road stud light
aluminum embedded in ground solar road stud light
NOKIN offers high-quality LED Solar Powered Road Studs, also known as Road Reflectors. These products are designed to guide vehicles and pedestrians for directions.
The road reflectors we offer are powered by solar energy, making them more environmentally friendly. Because of their light-feeling function, they automatically light up and help guide people on their way.
Our LED Solar Powered Road Studs are rated as IP68. They are fully dust-tight and protected from long-term immersion in water. They can withstand up to a specified pressure, and they have limited ingress protection. These lights also come in different colors such as red, green, yellow, white, and blue.
These pieces of lighting equipment signify our commitment to providing quality products to each and every household or business in the Philippines. We continually strive to provide easy access to energy-efficient and environmentally friendly lighting alternatives that are set at reasonably low and affordable prices.
If you need a product recommendation or design inspiration for your projects, you may check out our Completed Lighting Project page for ideas.
For inquiries regarding our products and services, you may also send us an e-mail or contact us through our mobile numbers.
