Aluminum Recessed Solar Road Stud Light

Shenzhen NOKIN traffic facilities Co., Ltd is an innovative technology company for overseas personnel. Professional institutions of professional and technical development in road stud light and LED traffic products. Is a set of product development, production, sales, and integration of high-tech enterprises, the company’s main products are involved in solar traffic signal lamps, tunnel, tunnel-induced photoelectric products, solar road stud lights, solar LED full set of road signs instructions.

Share:
Content

Working Principle of Solar Road Stud Light

During the day, solar panels absorb sunlight and convert solar energy into electrical energy, which is stored in energy storage devices (batteries or capacitors). At night, the electrical energy in the energy storage devices is automatically converted into light energy (controlled by photoelectric switches) and emitted by LEDs. Bright light outlines the road and induces the driver’s sight. Solar road studs will start automatically to flash when night falls or with the onset of inclement weather. The bright flashing LEDs are highly effective at getting the attention of drivers much earlier than conventional road studs.

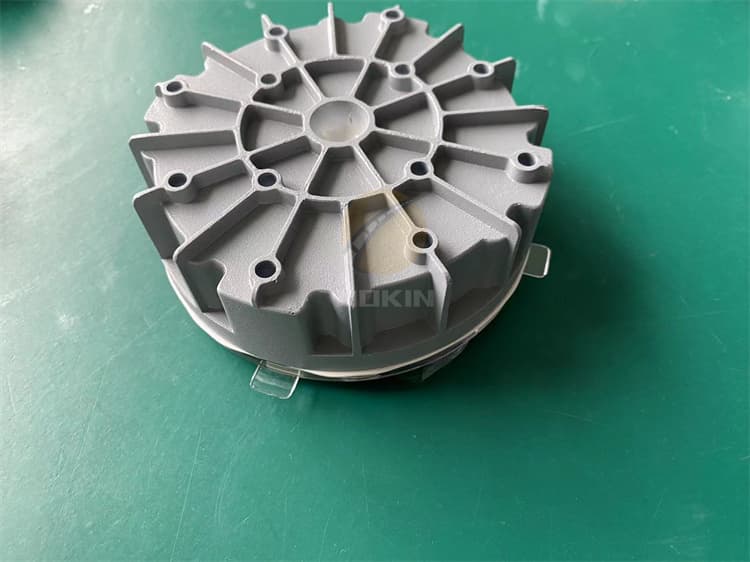

The base of this solar road stud is made of cast aluminum, and the surface is made of plastic spraying technology.
The product has a rubber bottom pad to increase the service life
The shell is made of reinforced PC material, which has excellent impact resistance and heat stability.
Loading capacity of more than 30 tons, can be used in the middle of the road.
These solar studs are very popular in the Philippines.

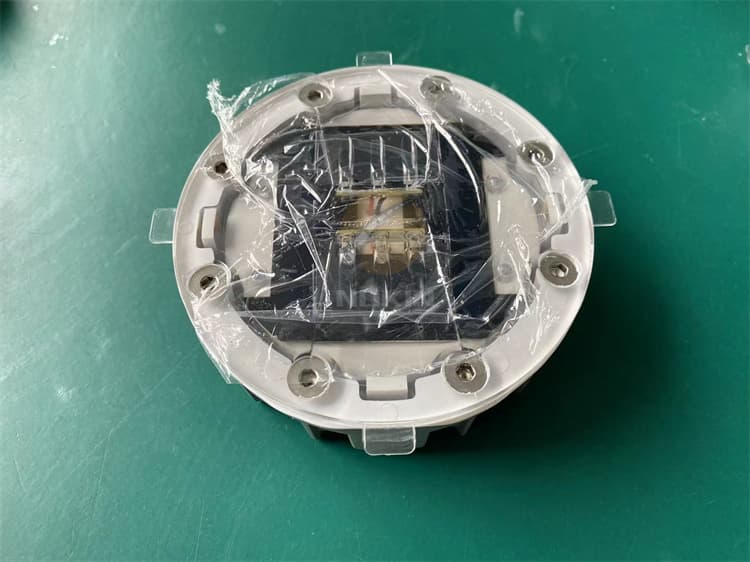

Aluminum Recessed Solar Road Stud Light
Aluminum Recessed Solar Road Stud Light

Installation Method Of Raised Solar Road Stud:

Carefully mark the distance between the placement of solar road stud lights. To prevent an adverse effect on the ground, use a proper tool such as Core Drill. Drill 35mm and the depth will be 55mm.
Remove all debris from the installation hole.
Pour epoxy into the holes per the manufacturer’s instruction.
Verify that the installation hole is straight. Verify that the installation hole is large enough to allow the epoxy to surround the solar-led road stud shaft.
Set the lighting surface of the solar road stud to the desired viewing angle. Verify the epoxy is evenly adhering to the installation hole and solar marker shaft. Verify the bottom of the solar road marker is firmly installed on the installation surface allowing for zero surface float; to occur. (space between installation surface and bottom of the solar marker).
After curing the LED solar road stud for 6-8 hours, remove the installation of the isolation facility.
The recommended spacing between each solar road stud is as follows:
Highways and Expressways
7 – 8 yards (5 – 6 meters)
Dangerous Entrances and Exits
4 – 5 yards (2 – 3 meters)
Access or Exit ways for Hospitals, Parking Lots, etc.
0.5 – 3 yards (0.5 – 2 meters)
The spacing between each solar stud is also according to your actual application requirements, the above values are for reference only.

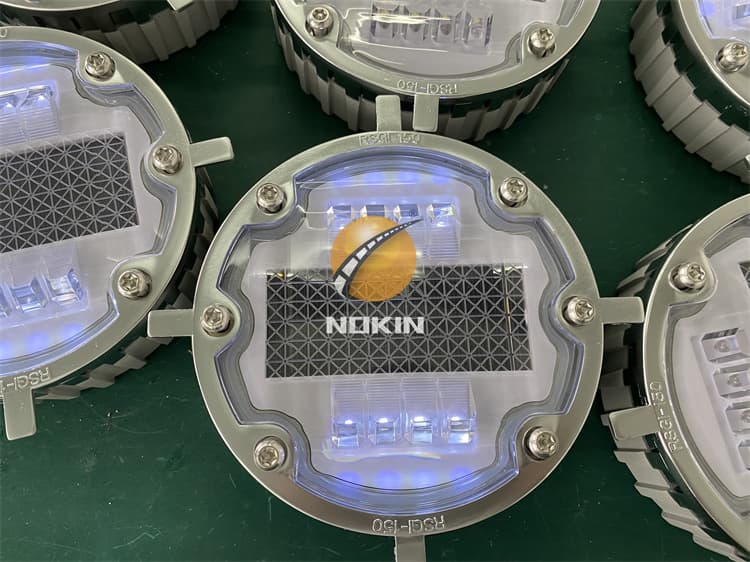

Aluminum Recessed Solar Road Stud Light
Aluminum Recessed Solar Road Stud Light

Shenzhen NOKIN traffic facilities Co., Ltd is an innovative technology company for overseas personnel. Professional institutions of professional and technical development in road stud light and LED traffic products. Is a set of product development, production, sales, and integration of high-tech enterprises, the company’s main products are involved in solar traffic signal lamps, tunnel, tunnel-induced photoelectric products, solar road stud lights, solar LED full set of road signs instructions.
