China Quality Solar Road Studs Supplier
The solar system of solar-powered marker lights is conducive to reducing environmental impact and saving costs. With more than 20 years of factory experience, led solar road stud produced by our company’s own competitive price and offers more choice to the global traffic road safety market and trustworthy partners all over the world, especially in the Philippines.
Product Detail
Solar Road Studs also known as cat eyes can help to reduce accidents at regional rail crossings, or intersections and provide guidance and hazard warning to drivers in darkness and evil weather. The solar system of solar-powered marker lights is conducive for reducing environmental impact and saving costs. With more than 20 years of factory experience, led solar road stud produced by our company’s own competitive price and offers more choice to global traffic road safety market and trustworthy partners all over the world, especially in the Philippines.

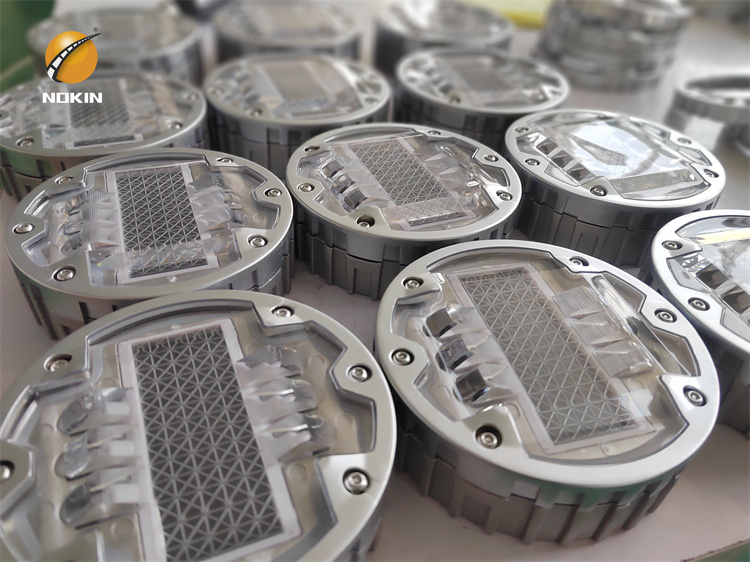

The base of these solar-powered marker lights is cast aluminum, and the surface is made of plastic spraying technology.
The shell is made of reinforced PC material, which has excellent impact resistance and heat stability.
Loading capacity of more than 30 tons, can be used in the middle of road.
Roadway lighting systems are now widely accepted as essential for controlling traffic flow in many applications. In practice, such systems operate well above the road surface and use a number of well-known and widely accepted colors, with lights in particular orientations to make the message to a driver clear and univocal thereby improving the outturn of the road while enhancing safety aspects.
Body material : | Aluminum Alloy+PC cover |
Power supply: | Solar panel(Monocrystalline 5V /80MA) |
Battery: | Lithium battery 1000MAH*3.2V |
LED: | Ultra bright diameter 8mm*6PCS |
LED Color: | White Green Red Yellow Blue |
Flashing model: | flashing or constant |
Working hours: | 140 hrs for flashing modes,40hrs for constant modes |
Visual distance: | 1000m(approx) |
Waterproof: | IP68 |
Load Capacity | >30T(can be installed in the middle of the road) |
Size: | φ150*50mm / φ143*47mm |
Package: | 1pcs/box; 30pcs/ctn; Weight: 38.5kgs; Carton size: 80*33*19cm
(1pcs/box; 30pcs/ctn; Weight: 84.88bs; Carton size: 31.50″*12.99″*7.48″) |
Life span: | more than 5 years |
Working Temperature | -20 °C~ + 70°C |
waterproof | IP68 |
Working Principle of Solar Road Stud Light
During the day, solar panels absorb sunlight and convert solar energy into electrical energy, which is stored in energy storage devices (batteries or capacitors). At night, the electrical energy in the energy storage devices is automatically converted into light energy (controlled by photoelectric switches) and emitted by LEDs. Bright light outlines the road and induces the driver’s sight. Solar road studs will starts automatically to flash when night falls or with the onset of inclement weather . The bright flashing LEDs are highly effective at getting the attention of drivers much earlier than conventional road studs.
Q1: What about the application of the road stud?
A1: Road Delineation, Accident black spots/cluster sites, Hazardous roads, Areas adversely affected by poor visibility, Cycle path, Car parks, Sidelines of highways, roadsides, partition areas, bridge roads, road curves, T-Intersection, highway exits, and many more applications.
Q2.what color do you have?
A2: we have Yellow/white/red/blue/green color
Q3: Can I have a sample order for road studs?
A3: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q4: How do you ship the goods and how long does it take to arrive?
A4: We usually ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5: Is it OK to print my logo on an led light product?
A5: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer a guarantee for the products?
A6: Yes, we offer a 2-5 years warranty on our products.
