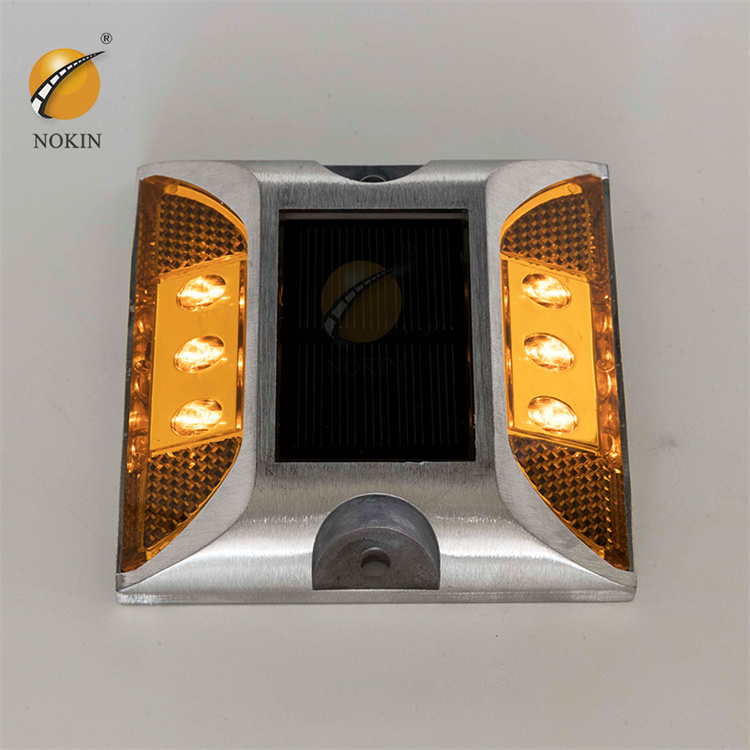

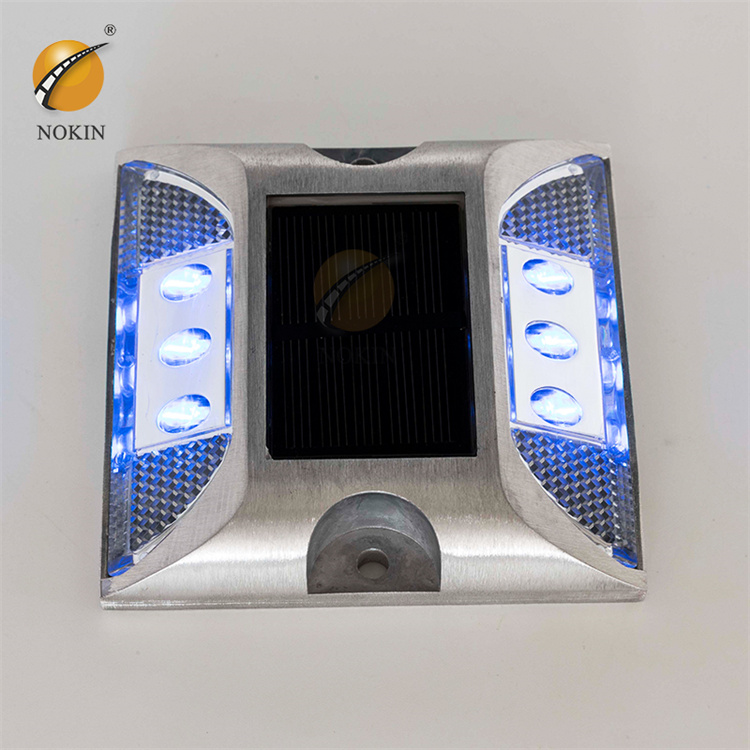

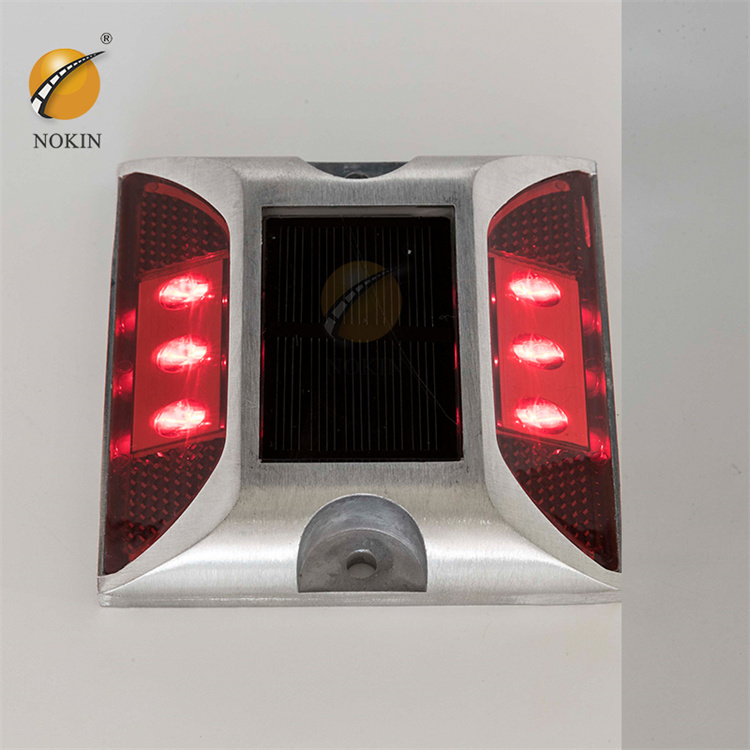

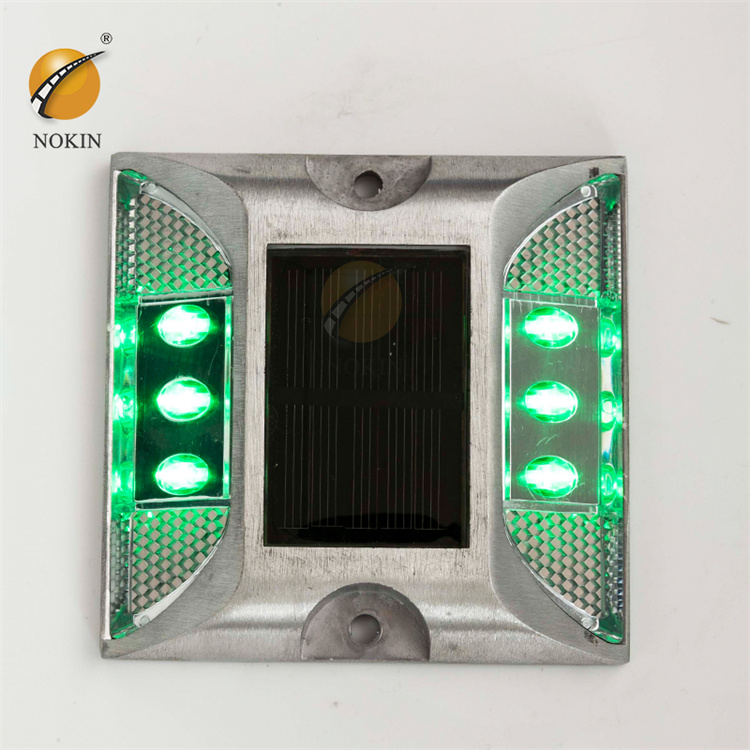

Colorful Flashing Road Stud Light Decorating the Road
Solar road studs are improved and innovated on the basis of traditional cat-eye reflective road signs, mainly to develop the field of road traffic safety, with the purpose of improving road safety and reducing the probability of traffic accidents. At the same time, it can also be used in other fields, such as courtyard decorative lighting, square landscape lighting, etc.
Send Inquiry
Quote Online
Share:
Content
Following is the video on how to work the solar road stud NK-RS-A6B.
Application:
Solar road studs are improved and innovated on the basis of traditional cat-eye reflective road signs, mainly to develop the field of road traffic safety, with the purpose of improving road safety and reducing the probability of traffic accidents. At the same time, it can also be used in other fields, such as courtyard decorative lighting, square landscape lighting, etc.
Highways: Road studs are used on highways and roads without street lights on-road sections without isolation belts and insufficient night light.
Landscape lighting: Led solar road studs can also be used as marker light for park paths and decks of boats or bridges.
Crosswalks: Solar-powered road stud work for urban sidewalks, crosswalks(pedestrian crossings)roundabouts, and traffic islands.
Entrance of roads: Solar reflective road studs can be used for high-speed toll entrances to guide vehicles in and out.
SPECIFICATION:
Product Name | solar road stud NK-RS-A6B |
Body material | Hi-pressure Casting Aluminium alloy |
Power supply | Monocrystalline solar panel 2.5V/0.25W |
Battery | NI-MH 1.2V/ 600mah or Lithium battery (high-temperature resistance); |
LED | Ultra bright diameter 5mm 6pcs |
LED color | Red, Yellow, Green, Blue, White |
working mode | Recharging at day and working automatically at night |
Working hours | (1).Blinking:140hours for NI-MH battery;
(2).Constant:40hours for NI-MH battery; |
Life span | 2 years for NI-MH battery; |
Visual distance | >800m |
Waterproof | IP68 |
Resistance | >20T |
Size | L114*W129*H23mm/122*104*23mm+53mm |
Package: | 2pc/box;60pcs/ctn |
Carton Size: | Without shank: 2pcs/box; 60pcs/ctn; Weight: 21kgs; Carton size:58.5*24.5*18.5cm
(2pcs/box; 60pcs/ctn; Weight: 46.30bs; Carton size:23.03″*9.65″*7.28″) With shank: 1pcs/box; 45pcs/ctn; Weight: 18.5kgs; carton size: 56.5*34.8*23.6cm (1pcs/box; 45pcs/ctn; Weight: 40.79bs; Carton size:22.24″*13.70″*9.29″) |
Certificate | CE; ROHS; IP68 |
Working Principle of Solar Road Stud Light
During the day, the solar panel absorbs sunlight and converts solar energy into electrical energy, which is stored in an energy storage device (battery or capacitor). At night, the electrical energy in the storage device is automatically converted into light energy (controlled by a photoelectric switch) and emitted by LEDs. The bright light outlines the road and induces the driver’s vision. When night falls or bad weather arrives, the solar road studs automatically start flashing. The bright flashing LEDs are very effective in getting drivers’ attention earlier than traditional road studs.
The base of this solar road spike is made of cast aluminum with a plastic sprayed surface.
The product has a rubber base pad for added longevity
The housing is made of reinforced PC material with good impact resistance and thermal stability
The loading capacity is over 30 tons and can be used in the middle of the road.
These solar studs are very popular in the Philippines.
The base of this solar road spike is made of cast aluminum with a plastic sprayed surface.
The product has a rubber base pad for added longevity
The housing is made of reinforced PC material with good impact resistance and thermal stability
The loading capacity is over 30 tons and can be used in the middle of the road.
These solar studs are very popular in the Philippines.
