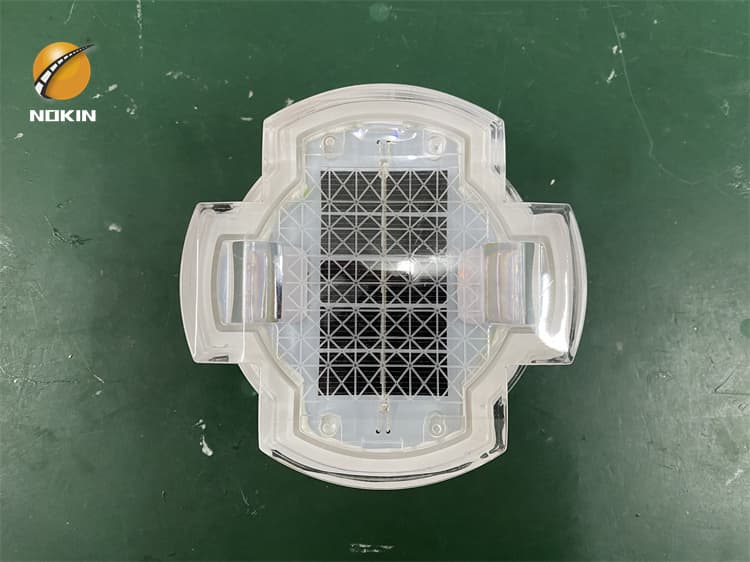

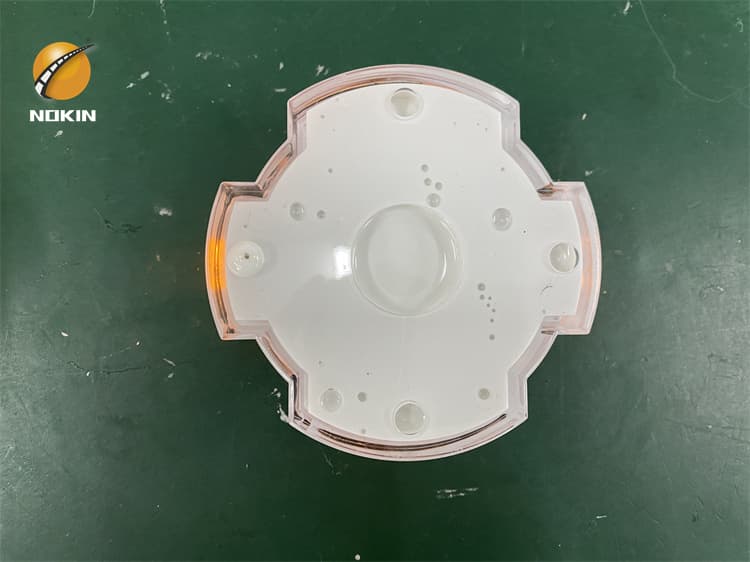

Customize Cast Aluminum Solar Road Stud Supplier

NOKIN LED Solar Road Stud is well received in Philippine Market, especially in Metro Manila, Davao City with a mostly advantaged price over any other China supplier or Philippine supplier. LED Solar road stud is a protruding sign. It’s self-luminous, supplied by solar panels. Generally used for paving roads, used at night or in the rain and foggy weather, and sketching the outline of the road, to improve road safety.

Share:
Content

Working Principle of Solar Road Stud Light

During the day, solar panels absorb sunlight and convert solar energy into electrical energy, which is stored in energy storage devices (batteries or capacitors). At night, the electrical energy in the energy storage devices is automatically converted into light energy (controlled by photoelectric switches) and emitted by LEDs. Bright light outlines the road and induces the driver’s sight. Solar road studs will start automatically to flash when night falls or with the onset of inclement weather. The bright flashing LEDs are highly effective at getting the attention of drivers much earlier than conventional road studs.
The base of this solar road stud is made of cast aluminum, and the surface is made of plastic spraying technology.
The product has a rubber bottom pad to increase the service life
The shell is made of reinforced PC material, which has excellent impact resistance and heat stability.
Loading capacity of more than 30 tons, can be used in the middle of the road.
Customize Cast Aluminum Solar Road Stud Supplier
Customize Cast Aluminum Solar Road Stud Supplier

SPECIFICATION:

Body material : Cast Aluminum
Power supply: 5V/60mAh Monocrystalline silicon
Battery: Lithium battery3.2V/1000mAh
LED: 3pcs/side φ5mm super brightness LED
LED Color: White Green Red Yellow Blue
Flashing model:  flashing  or constant
Working hours: 180 hrs for flashing modes,40hrs for steady modes
Visual distance: 1000m(approx)
Waterproof: IP68
Load Capacity >40T(can be installed in the middle of road)
Size: φ125*50mm   (φ4.92″*1.97″)
Package:  1pcs/box; 30pcs/ctn; weight: 30kgs; Carton size: 67.5*28*20cm

(1pcs/box; 30pcs/ctn; weight: 66.14bs; Carton size: 26.57″*11.02″*7.87″)

Life span: 3-5 years
Working Temperature -25 °C~ + 75°C
waterproof IP68
Customize Cast Aluminum Solar Road Stud Supplier
Customize Cast Aluminum Solar Road Stud Supplier
