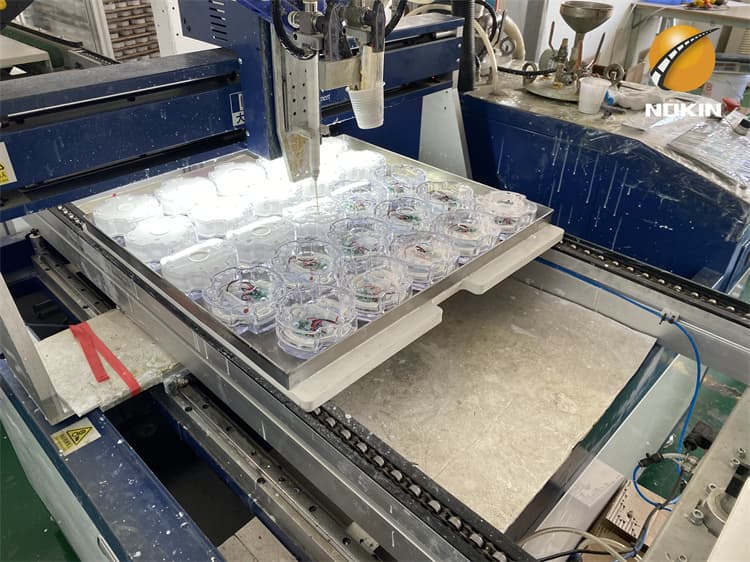

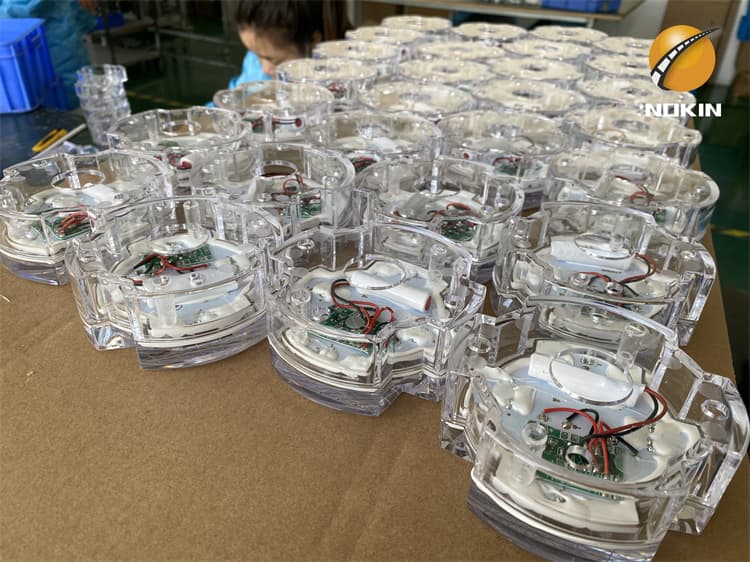

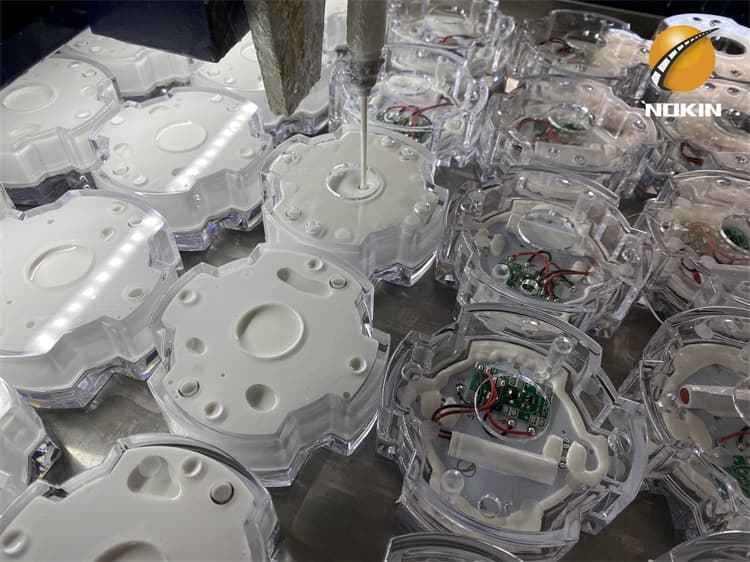

Embedded Solar Road Stud’s Production

NOKIN Road Stud Light X6 Application:

Dangerous blind corners and sharp curves, black spots, and poorly lit areas…
 Areas with whimsical and unpredictable weather conditions (coastal roads, foggy areas, wet and rainy regions, etc.)…
Joint intersections, on and off ramps, center lines, and dividers, entrance warnings, carpool lanes, bridges, crosswalks…
 Guidance lines, traffic islands, roundabouts, aprons, mountain roads…
Taxiways at airports, bike, and pedestrian lanes, aboard ships and watercraft…
 Entertainment areas, parking lots, hotel entrances, gas stations, and many more!

Share:
Content
Embedded Solar Road Stud's Production
Embedded Solar Road Stud’s Production

NOKIN Road Stud Light X6 Specifications:

Body material :
Aluminum Alloy+PC cover
Power supply:
Solar panel(Monocrystalline 5V /80MA)
Battery:
Lithium battery 1000MAH*3.2V
LED:
Ultra bright diameter 5mm*6PCS
LED Color:
White Green Red Yellow Blue
Flashing model:
 flashing  or constant
Working hours:
140 hrs for flashing modes,40hrs for constant modes
Visual distance:
1000m(approx)
Waterproof:
IP68
Load Capacity
>30T(can be installed in the middle of the road)
Size:
φ123*45mm  (φ4.84″*1.77″)
Package:
 1pcs/box; 30pcs/ctn; Weight: 30kgs; Carton size: 67.5*28*20cm
  (1pcs/box; 30pcs/ctn; Weight: 66.14bs; Carton size: 26.57″*11.02″*7.87″)
Life span:
 more than 5 years
Working Temperature
-20 °C~ + 70°C
waterproof
IP68
Embedded Solar Road Stud's Production
Embedded Solar Road Stud’s Production

NOKIN Road Stud Light Features:

  • Visibility distance can reach 800meters
  • New-developed special mixed glue owns the remarkable quality of Anti-corrosion, it can protect the reflector lens from being eroded.
  • The aluminum frame-made solar road stud can stand greater impact. Compression resistance of 40 tons. Sand-blasted and curved smooth edges can better buffer the tire compressors.
  • The flexible solar panel is better than the traditional one, which can be bendable.
  • The water-proof level can achieve the industry standard IP68.
  • Little power consumption and long life span. The new-developed solar road stud light has 6pcs ultra bright LEDs making the visible range more than 800 meters.
Embedded Solar Road Stud's Production
Embedded Solar Road Stud’s Production

NOKIN Road Stud Light X6 Application:

  • Dangerous blind corners and sharp curves, black spots, and poorly lit areas…
  •  Areas with whimsical and unpredictable weather conditions (coastal roads, foggy areas, wet and rainy regions, etc.)…
  • Joint intersections, on and off ramps, center lines, and dividers, entrance warnings, carpool lanes, bridges, crosswalks…
  •  Guidance lines, traffic islands, roundabouts, aprons, mountain roads…
  • Taxiways at airports, bike, and pedestrian lanes, aboard ships and watercraft…
  •  Entertainment areas, parking lots, hotel entrances, gas stations, and many more!
Embedded Solar Road Stud's Production
Embedded Solar Road Stud’s Production
NOKIN Road Stud Light Installation:
Drill the hole with a drilling machine:
The hole needs to have a diameter of 125mm. The depth should be around 47mm. We used a milling head but it is also possible to use a common diamond drill core.
Clean the hole:
For a proper fit of the Solar Road Stud light, the hole must be cleaned and dried.
Glue the Solar road stud light:
With adhesive tape, we protect the solar underfloor lamp as well as the road. Thus, an unpleasant cleaning can be prevented later on.
Final work:
Thanks to the overflow notches in the solar road stud light housing, the excess glue can escape unimpeded. This allows a simple and precise alignment of the lamp. The excess material is removed with a cloth.
Now remove the adhesive tape from the lamp as well as around the hole.
