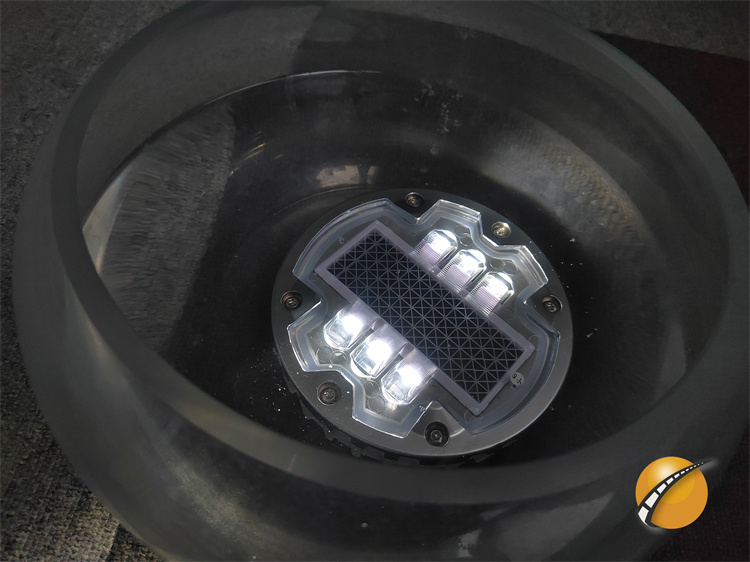

Flashing Solar Road Stud For Road Decorate

The solar road stud is a flashing solar battery-powered LED lighting device used in road construction to delineate the edge and the center line of the road.

Share:
Content

The solar road stud is a flashing solar battery-powered LED lighting device used in road construction to delineate the edge and the center line of the road. Embedded on the road, they are an improvement on the traditional cat’s eye, because they can give the driver response of more than 32 seconds, while the traditional reflection device only has about 3 seconds.

Body material : Aluminum Alloy+PC cover
Power supply: Solar panel(Monocrystalline 5V /80MA)
Battery: Lithium battery 1000MAH*3.2V
LED: Ultra bright diameter 8mm*6PCS
LED Color: White Green Red Yellow Blue
Flashing model:  flashing  or constant
Working hours: 140 hrs for flashing modes,40hrs for constant modes
Visual distance: 1000m(approx)
Waterproof: IP68
Load capacity >30T(can be installed in the middle of road)
Size: φ150*50mm / φ143*47mm
Package:  1pcs/box; 30pcs/ctn; Weight: 38.5kgs; Carton size: 80*33*19cm

(1pcs/box; 30pcs/ctn; Weight: 84.88bs; Carton size: 31.50″*12.99″*7.48″)

Life span:  more than 5 years
Working Temperature -20 °C~ + 70°C
waterproof IP68



Installation Method Of Embedded Solar Road Studs
1. Mark the proper installation position. Normally, a 3m distance between road studs will be better.
2. Use the core drilling machine to drill a hole according to the actual size of the shark. Dry the holes with a blowtorch and clean the hole.
3. The epoxy value ratio: Of a glue and B glue is 1: 1. The glue should be mixed well-distributed with the electric drill, 40-50g will be used for each
4. Pour the glue into the hole, get to three-quarters of the hole: Clean the bottom of the solar stud and put it into the hole.
5. Use the knife to clean the surrounding overflow glue after the installation and re-mover all debris from the carriageway.
6. Wait 8 hours for drying before activating the solar stud.
The spacing between each solar stud is also according to your actual application requirements, the above values are for reference only.
