Internal structure of solar road stud

Shenzhen NOKIN traffic facilities Co., Ltd is an innovative technology company for overseas personnel. Professional institutions of professional and technical development in road stud light and LED traffic products. Is a set of product development, production, sales, and integration of high-tech enterprises, the company’s main products are involved in solar traffic signal lamps, tunnel, tunnel-induced photoelectric products, solar road stud lights, solar LED full set of road signs instructions.

Share:
Content

Working Principle of Solar Road Stud Light

During the day, solar panels absorb sunlight and convert solar energy into electrical energy, which is stored in energy storage devices (batteries or capacitors). At night, the electrical energy in the energy storage devices is automatically converted into light energy (controlled by photoelectric switches) and emitted by LEDs. Bright light outlines the road and induces the driver’s sight. Solar road studs will start automatically to flash when night falls or with the onset of inclement weather. The bright flashing LEDs are highly effective at getting the attention of drivers much earlier than conventional road studs.
The base of this solar road stud is made of cast aluminum, and the surface is made of plastic spraying technology.
The product has a rubber bottom pad to increase the service life
The shell is made of reinforced PC material, which has excellent impact resistance and heat stability.
Loading capacity of more than 30 tons, can be used in the middle of the road.

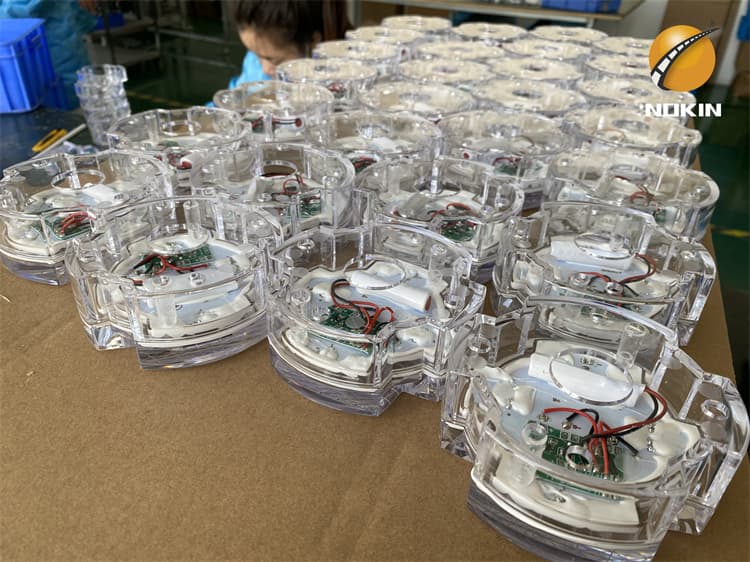

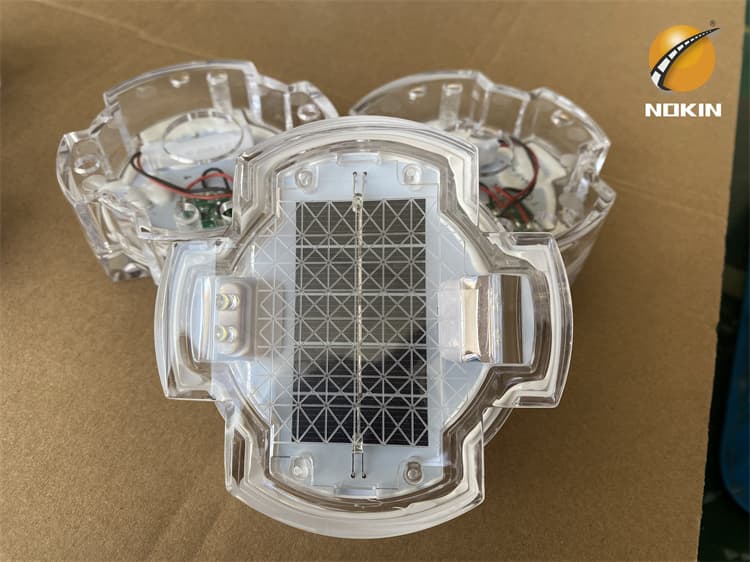

Internal structure of solar road stud
The internal structure of solar road stud

SPECIFICATION:

Body material : Aluminum Alloy+PC cover
Power supply: Solar panel(Monocrystalline 5V /80MA)
Battery: Lithium battery 1000MAH*3.2V
LED: Ultra bright diameter 5mm*6PCS
LED Color: White Green Red Yellow Blue
Flashing model:  flashing  or constant
Working hours: 140 hrs for flashing modes,40hrs for constant modes
Visual distance: 1000m(approx)
Waterproof: IP68
Load Capacity >30T(can be installed in the middle of  the road)
Size: φ123*45mm  (φ4.84″*1.77″)
Package:  1pcs/box; 30pcs/ctn; Weight: 30kgs; Carton size: 67.5*28*20cm

(1pcs/box; 30pcs/ctn; Weight: 66.14bs; Carton size: 26.57″*11.02″*7.87″)

Life span:  more than 5 years
Working Temperature -20 °C~ + 70°C
waterproof IP68
Internal structure of solar road stud
The internal structure of solar road stud
