NOKIN Aluminum Led Road Stud For Highway

During the day, solar panels absorb sunlight and convert solar energy into electrical energy, which is stored in energy storage devices (batteries or capacitors). At night, the electrical energy in the energy storage devices is automatically converted into light energy (controlled by photoelectric switches) and emitted by LEDs. Bright light outlines the road and induces the driver’s sight. Solar road studs will start automatically to flash when night falls or with the onset of inclement weather. The bright flashing LEDs are highly effective at getting the attention of drivers much earlier than conventional road studs.

Share:
Content

Working Principle of Solar Road Stud Light

During the day, solar panels absorb sunlight and convert solar energy into electrical energy, which is stored in energy storage devices (batteries or capacitors). At night, the electrical energy in the energy storage devices is automatically converted into light energy (controlled by photoelectric switches) and emitted by LEDs. Bright light outlines the road and induces the driver’s sight. Solar road studs will start automatically to flash when night falls or with the onset of inclement weather. The bright flashing LEDs are highly effective at getting the attention of drivers much earlier than conventional road studs.
The base of this solar road stud is made of cast aluminum, and the surface is made of plastic spraying technology.
The product has a rubber bottom pad to increase the service life
The shell is made of reinforced PC material, which has excellent impact resistance and heat stability.
Loading capacity of more than 30 tons, can be used in the middle of the road.

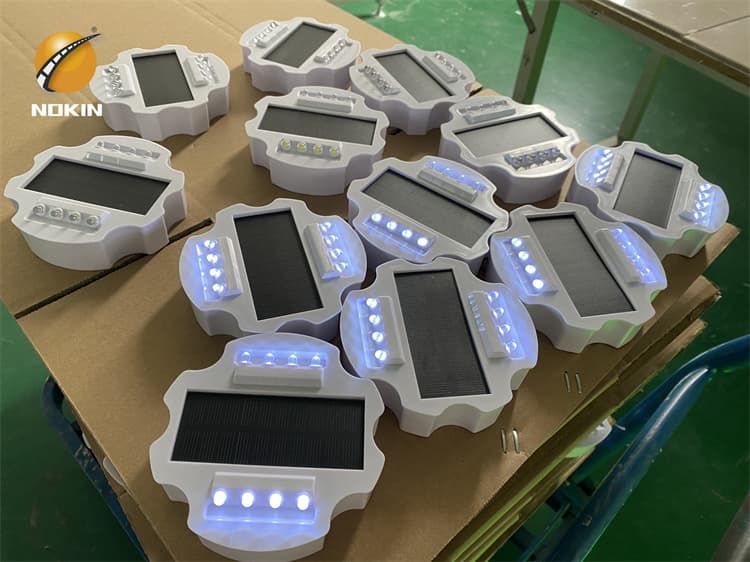

NOKIN Aluminum Led Road Stud For Highway
NOKIN Aluminum Led Road Stud For Highway

Installation Method Of Embedded Solar Road Studs

1. Mark the proper installation position. Normally, a 3m distance between road studs will be better.
2. Use the core drilling machine to drill a hole according to the actual size of the shark. Dry the holes with a blowtorch and clean the hole.
3. The epoxy value ratio: Of a glue and B glue is 1: 1. The glue should be mixed well-distributed with the electric drill, 40-50g will be used for each
4. Pour the glue into the hole, get to three-quarters of the hole: Clean the bottom of the solar stud and put it into the hole.
5. Use the knife to clean the surrounding overflow glue after the installation and re-mover all debris from the carriageway.
6. Wait 8 hours for drying before activating the solar stud.
The spacing between each solar stud is also according to your actual application requirements, the above values are for reference only.

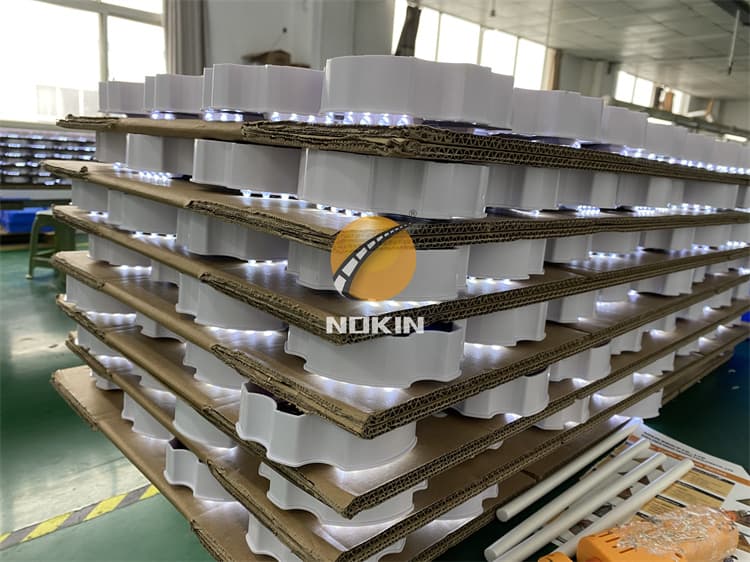

NOKIN Aluminum Led Road Stud For Highway
NOKIN Aluminum Led Road Stud For Highway

FAQ

Q1: What about the application of the road stud?
A1: Road Delineation, Accident black spots/cluster sites, Hazardous roads, Areas adversely affected by poor visibility, Cycle path, Car parks, Sidelines of highways, roadsides, partition areas, bridge roads, road curves, T-Intersection, highway exits, and many more applications.
Q2.what color do you have?
A2: We have Yellow/white/red/blue/green color
Q3: Can I have a sample order for road studs?
A3: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q4: How do you ship the goods and how long does it take to arrive?
A4: We usually ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5: Is it OK to print my logo on a led light product?
A5: Yes. Please inform us formally before our production and confirm the design first based on our sample.
Q6: Do you offer a guarantee for the products?
A6: Yes, we offer a 2-5 years warranty on our products.
