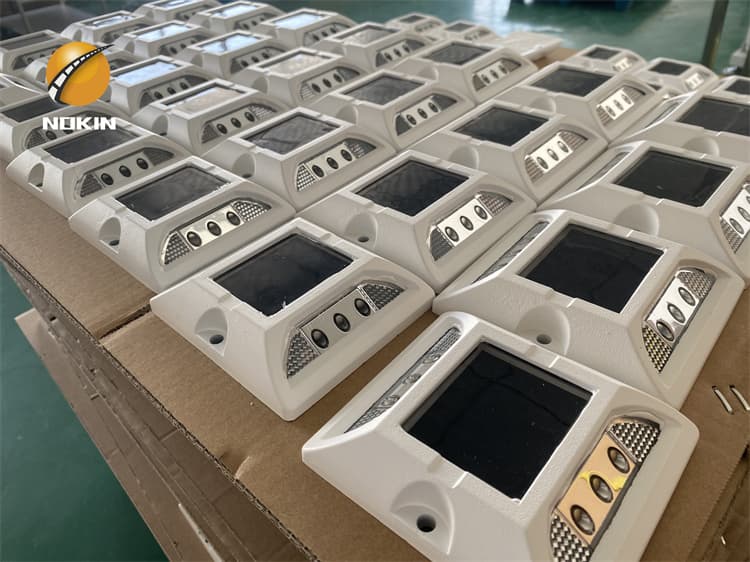

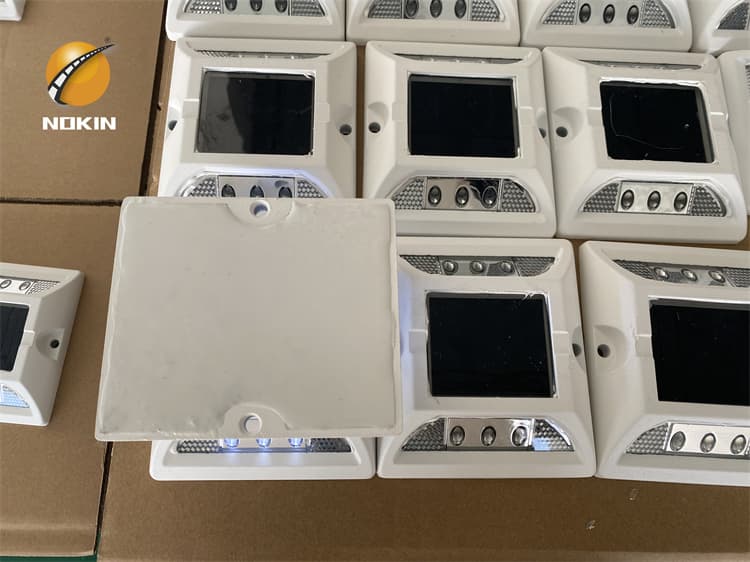

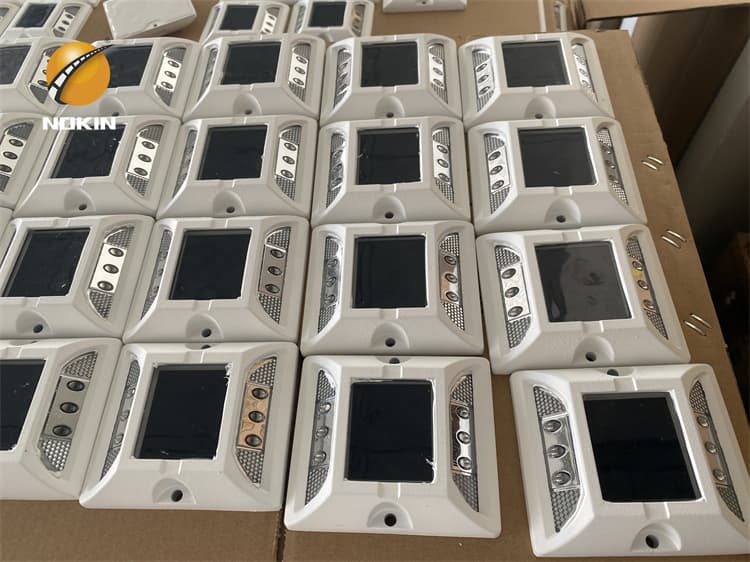

OEM Solar Road Stud Light Pavement Marker For Highway

Solar road studs are a type of road safety device that uses solar energy to power LED lights to improve visibility and safety on the road, especially at night and in adverse weather conditions. They are typically installed on the road surface and are commonly used to mark lane boundaries, center lines, and other important traffic areas.

Share:
Content

Installing a flush solar road stud involves a few steps:

  1. Choose the location: Identify the location where you want to install the flush solar road stud. Make sure it’s a flat and smooth surface, free from debris or cracks.
  2. Mark the location: Mark the location with chalk or paint where you want to install the flush solar road stud.
  3. Prepare the surface: Clean the surface thoroughly to remove any dirt or debris. If the surface is uneven, level it using concrete or asphalt.
  4. Cut the hole: Use a concrete saw or a core drill to cut a hole in the surface where you marked it. Make sure the hole is the right size to fit the flush solar road stud.
  5. Install the road stud: Insert the flush solar road stud into the hole you just cut. Make sure the stud is level with the surface of the road.
  6. Seal the edges: Apply a sealant around the edges of the road stud to prevent water from seeping in and damaging the stud.
  7. Test the stud: Turn on the solar panel to test if the road stud is working properly.
  8. Repeat: Repeat the above steps to install additional flush solar road studs.

It’s important to follow any specific installation instructions provided by the manufacturer of the road stud to ensure proper installation and maximum effectiveness.

OEM Solar Road Stud Light Pavement Marker For Highway
OEM Solar Road Stud Light Pavement Marker For Highway

SPECIFICATIONS:

Body material Hi-pressure Casting Aluminium alloy
Power supply Solar panel(Monocrystalline 2.5V /0.2W)
Battery NI-MH1.2V/800MAH or Super capacitor(120F)
LED Ultra bright diameter 5mm; 6pcs(double side)
LED color Red, Yellow, Green, Blue, White
working mode Recharging at day and working automatically at night
Flashing mode Blinking or constant(flashing frequency 2Hz, also can be made according to your requirements)
Working hours Fully charge at 8 hours and can work 120hours continuously
Waterproof IP68
Visual distance >800m
Life span >3years
Load Capacity >20T
Size L123*W133*H22mm+55mm   (L4.84″*W5.24″*H0.87″+2.17″)
Working temperature -40~85 °C
Package: 1pcs/box; 45pcs/ctn; weight: 31kgs; Carton size: 66.5*44*28cm

(1pcs/box; 45pcs/ctn; weight: 68.34bs; Carton size: 26.18″*17.32″*11.02″)

Solar Powered Motorway Road Studs Reflector Supplier
Solar Powered Motorway Road Studs Reflector Supplier

Solar road studs are a type of road safety device that uses solar energy to power LED lights to improve visibility and safety on the road, especially at night and in adverse weather conditions. They are typically installed on the road surface and are commonly used to mark lane boundaries, center lines, and other important traffic areas.
