Perfect Display of Solar Road Stud

Solar road studs will start automatically to flash when night falls or with the onset of inclement weather. The bright flashing LEDs are highly effective at getting the attention of drivers much earlier than conventional road studs.

Share:
Content
Perfect Display of Solar Road Stud
Perfect Display of Solar Road Stud
Working Principle of Solar Road Stud Light
During the day, solar panels absorb sunlight and convert solar energy into electrical energy, which is stored in energy storage devices (batteries or capacitors). At night, the electrical energy in the energy storage devices is automatically converted into light energy (controlled by photoelectric switches) and emitted by LEDs. Bright light outlines the road and induces the driver’s sight. Solar road studs will start automatically to flash when night falls or with the onset of inclement weather. The bright flashing LEDs are highly effective at getting the attention of drivers much earlier than conventional road studs.
The base of this solar road stud is made of cast aluminum, and the surface is made of plastic spraying technology.
The product has a rubber bottom pad to increase the service life
The shell is made of reinforced PC material, which has excellent impact resistance and heat stability.
Loading capacity of more than 30 tons, can be used in the middle of the road.
These solar studs are very popular in the Philippines.
Perfect Display of Solar Road Stud
Perfect Display of Solar Road Stud
1. Die-aluminum body. The original cat eyes road stud was with a plastic body, but for led solar road stud, the die-cast aluminum road stud is the main trend It has the characteristics of anti-aging,anti-corrosion,anti-ultraviolet rays, etc., and its compression resistance is stronger than plastic road studs and can reach 30Tons or even higher.
2. Storage battery. There are Ni-MH batteries, Li-battery, and capacity optional. Has the characteristics of low cost, high-temperature resistance, stable performance, and not easy to explode. It is the best cost-effective solution on the market.
3.LED  Chips,there are 5 colours for choices,green,white,red,blue,yellow.

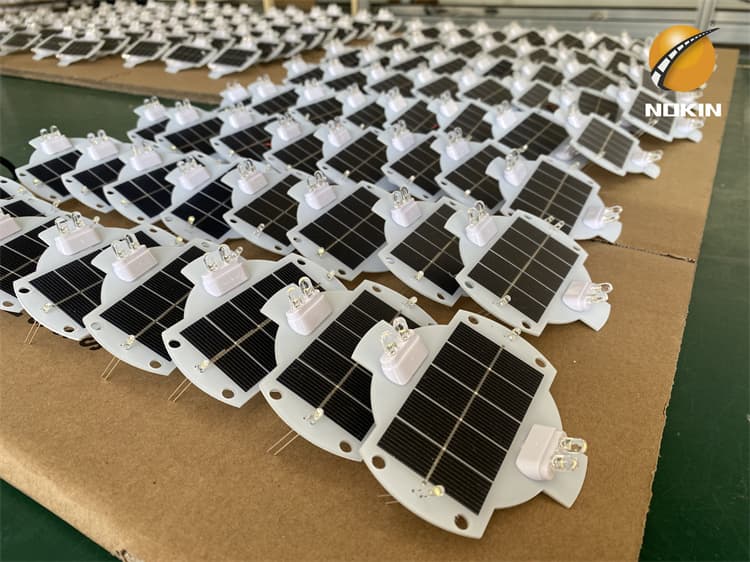

4. Solar panel, efficiency up to 19%.
5. The reflector has the function of passive reflection under the illumination of light. It can alert the driver when the LED lamp or solar system fails.
Perfect Display of Solar Road Stud
Perfect Display of Solar Road Stud
Body material : Aluminum Alloy+PC cover
Power supply: Solar panel(Monocrystalline 5V /80MA)
Battery: Lithium battery 1000MAH*3.2V
LED: Ultra bright diameter 5mm*6PCS
LED Color: White Green Red Yellow Blue
Flashing model:  flashing  or constant
Working hours: 140 hrs for flashing modes,40hrs for constant modes
Visual distance: 1000m(approx)
Waterproof: IP68
Load Capacity >30T(can be installed in the middle of the road)
Size: φ123*45mm  (φ4.84″*1.77″)
Package:  1pcs/box; 30pcs/ctn; Weight: 30kgs; Carton size: 67.5*28*20cm

(1pcs/box; 30pcs/ctn; Weight: 66.14bs; Carton size: 26.57″*11.02″*7.87″)

Life span:  more than 5 years
Working Temperature -20 °C~ + 70°C
waterproof IP68
