Raised Solar Road Stud Factory

NOKIN offers high-quality LED Solar Powered Road Studs, also known as Road Reflectors. These products are designed to guide vehicles and pedestrians for directions. The road reflectors we offer are powered by solar energy, making them more environmentally friendly. Because of their light-feeling function, they automatically light up and help guide people on their way. Our LED Solar Powered Road Studs are rated as IP68. They are fully dust-tight and protected from long-term immersion in water. They can withstand up to a specified pressure, and they have limited ingress protection. These lights also come in different colors such as red, green, yellow, white, and blue.

Share:
Content

Working Principle of Solar Road Stud Light

During the day, solar panels absorb sunlight and convert solar energy into electrical energy, which is stored in energy storage devices (batteries or capacitors). At night, the electrical energy in the energy storage devices is automatically converted into light energy (controlled by photoelectric switches) and emitted by LEDs. Bright light outlines the road and induces the driver’s sight. Solar road studs will start automatically to flash when night falls or with the onset of inclement weather. The bright flashing LEDs are highly effective at getting the attention of drivers much earlier than conventional road studs.

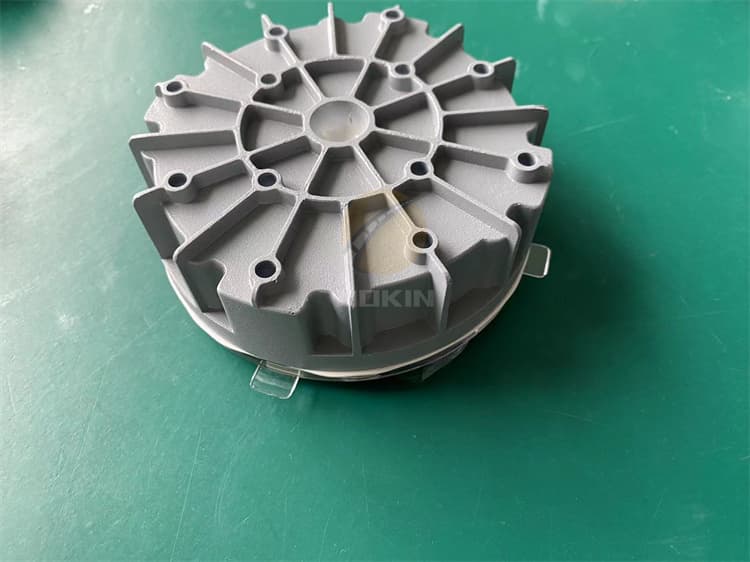

The base of this solar road stud is made of cast aluminum, and the surface is made of plastic spraying technology.
The product has a rubber bottom pad to increase the service life
The shell is made of reinforced PC material, which has excellent impact resistance and heat stability.
Loading capacity of more than 30 tons, can be used in the middle of the road.
Raised Solar Road Stud Factory
Raised Solar Road Stud Factory

SPECIFICATION:

Body material : Cast Aluminum
Power supply: 5V/60mAh Monocrystalline silicon
Battery: Lithium battery3.2V/1000mAh
LED: 3pcs/side φ5mm super brightness LED
LED Color: White Green Red Yellow Blue
Flashing model:  flashing  or constant
Working hours: 180 hrs for flashing modes,40hrs for steady modes
Visual distance: 1000m(approx)
Waterproof: IP68
Load Capacity >40T(can be installed in the middle of road)
Size: φ125*50mm   (φ4.92″*1.97″)
Package:  1pcs/box; 30pcs/ctn; weight: 30kgs; Carton size: 67.5*28*20cm

(1pcs/box; 30pcs/ctn; weight: 66.14bs; Carton size: 26.57″*11.02″*7.87″)

Life span: 3-5 years
Working Temperature -25 °C~ + 75°C
waterproof IP68
Raised Solar Road Stud Factory
Raised Solar Road Stud Factory
NOKIN offers high-quality LED Solar Powered Road Studs, also known as Road Reflectors. these products are designed to guide vehicles and pedestrians for directions. The road reflectors we offer are powered by solar energy, making them more environmentally friendly. Because of their light-feeling function, they automatically light up and help guide people on their way. Our LED Solar Powered Road Studs are rated as IP68. They are fully dust-tight and protected from long-term immersion in water. They can withstand up to a specified pressure, and they have limited ingress protection. These lights also come in different colors such as red, green, yellow, white, and blue.
