road stud reflective for farm heavy duty

Solar pavement markers, also called solar cat eyes, use the principle of solar lighting system to integrate a set of components including the LED light source, energy storage battery, and charging solar panel in the traditional reflective road stud. At night or under the condition of insufficient brightness, it can actively emit amber, white, green, red, or blue lights, and at the same time with high reflective film, accurately and safely outline the forward direction of the road, which greatly provides road driving security.

Share:
Content
road stud for farm heavy duty reflective
road stud for farm heavy duty reflective



Solar pavement markers, also called solar cat eyes, use the principle of solar lighting system to integrate a set of components including the LED light source, energy storage battery, and charging solar panel in the traditional reflective road stud. At night or under the condition of insufficient brightness, it can actively emit amber, white, green, red, or blue lights, and at the same time with high reflective film, accurately and safely outline the forward direction of the road, which greatly provides road driving security.



road stud for farm heavy duty reflective
road stud for farm heavy duty reflective



Feature

  • Solar pavement markers are with high-quality F5 LED Chips,5 colours optional(Amber, White, Red, Blue, Green), they are suitable for different places.
  • One-sided design,2pcs led chips,3pcs led chips optional. Its visual distance up to 500 meters.
  • Working model(steady on or flashing) optional.
  • The shell adopts an integrated die-casting design that has superior waterproof performance, and the protection level can reach IP66.
  • Die-cast aluminum shell with anti-corrosion and anti-rust. Solar pavement markers’ load capacity is greater than 16T.
  • Using a mono solar-powered panel, the conversion efficiency reaches 19%, which can quickly fully charge the battery. It will be working for 5 days when fully charged.
  • Ni-MH battery has high temperature resistance performance and can work well in a sealed lamp body. After the battery is charged and discharged 1,000 times,the battery capacity can be maintained at 79%.
  • Easy surface mounted installation only by glue and screws.
  • Solar pavement markers are Comply with CE RoHS.



road stud for farm heavy duty reflective
road stud for farm heavy duty reflective



Application

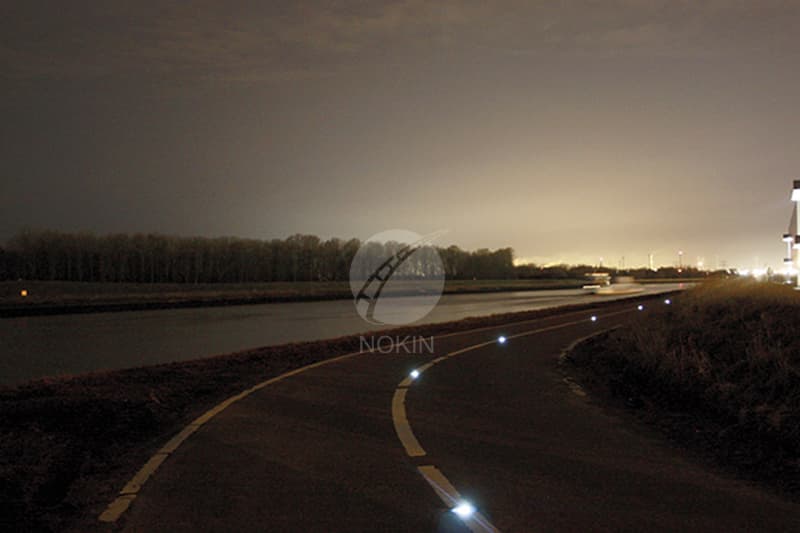

Solar-led road markers are mainly used for roads, expressways, paths, crosswalks, etc. There are 5 colors for road markers.

The amber solar pavement markers are the most popular for the middle or edge of the road, path.

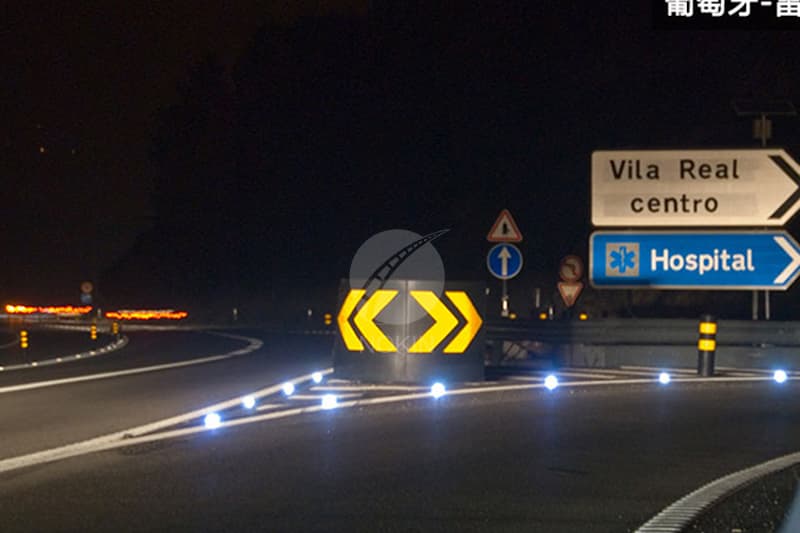

The white solar studs are placed between the two lanes or between the lanes of the highway.

Many engineering companies install red solar pavement markers along the hard shoulders of highways.

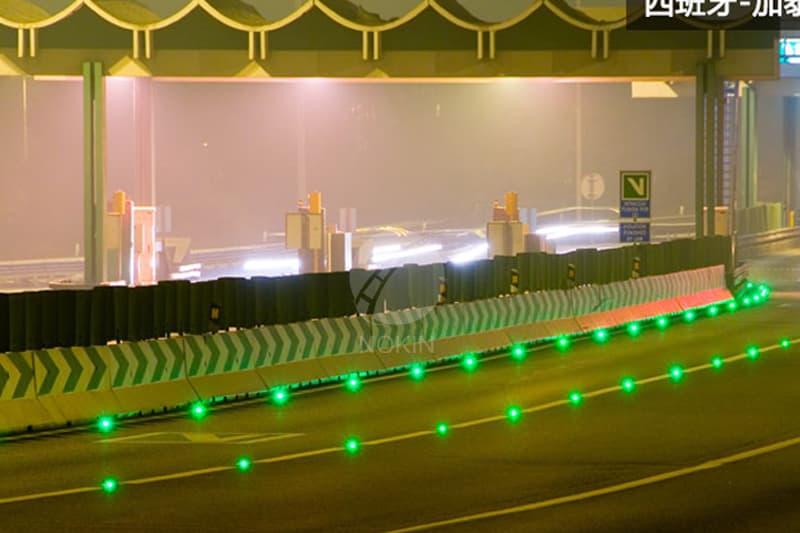

The green road studs indicate where the intersection connects or leaves the highway,usually called a highway branch.

You can use the blue road studs for emergency services.

road stud for farm heavy duty reflective
road stud for farm heavy duty reflective



LED Quantities 2leds single-sided 3leds one-sided
LED Source type F5 LED Chips
Color Amber, Red, Green, Blue, White optional
Materials Die-cast aluminum body+High strength reflector
Dimension 105*105*22mm
Solar panel Mono solar panel, 2.5V 120mAH
Battery Ni-MH battery 1.2V 600mAH, the Li-battery or capacitor available if needed
Working model Steady on(last 40hours) or Flash (last 300Hrs)
Visual distance >500meters
IP Grade IP66
Working life >3years
Compressive capacity >16Tons
Working environments -20℃~+70℃
Inner Package 2pcs/inner box (120*120*50mm)/0.5KG
Package  400×280×270mm/60PCS/15KG
