reflective road stud for farm ultra thin
solar road stud lights are installed on the road, and remind the driver to guide the direction in rainy, foggy, and low visibility periods by means of constant light or flashing. Compared with reflective road studs, it has active light-emitting and flashing reminders. Compared with ordinary road marker lights, it has the functions of preventing dizziness and clear and orderly warning reminders.
solar road stud lights are installed on the road, and remind the driver to guide the direction in rainy, foggy, and low visibility periods by means of constant light or flashing. Compared with reflective road studs, it has active light-emitting and flashing reminders. Compared with ordinary road marker lights, it has the functions of preventing dizziness and clear and orderly warning reminders.
Feature for solar road stud lights
- Die-cast aluminum is used as the shell material, which is strong impact resistance and compression resistance of 16Tons. The solar panel is embedded in the aluminum frame so that it can better absorb solar energy and will not be damaged by the rolling of the car.
- The monocrystalline silicon solar panel with high purity and high solar energy conversion rate can be fully charged at the fastest speed. One-time fully charged solar road stud lights can flash continuously for 72 hours.
- Using LED super brightness F5 chips with 8000mcd, the visual distance can reach 875yards, making it easier for people to notice the light. The same is there are yellow, green, blue, red, white colors for led solar road stud light.
- A solar control system is integrated inside the road sign light, which can be turned on and off automatically by a photocell. When leaving the factory, the working model of the led solar road stud light(constant light or flashing)can be set according to specific needs, and the flashing frequency can be set to 40-80times/minutes according to requirements.
- Our standard for the solar led road stud is to use the Ni-MH battery that is resistant to high temperature and not easy to explode through MSDS as the power storage device, but it can be changed to Li-battery or capacitor according to customer requirements.
- Surface-mounted installation, easy to do installation or maintenance.
LED Chips | 6pcs F5 LED Chips(3pcs one sides) |
Power | 0.4Watt |
LED Colour | Amber(Yellow), Green, Red, Blue, White optional |
Visual distance | >500meter |
Materials | Die-cast aluminum body+solar panel+battery+led |
Dimension | 105*97*23mm |
IP Grade | IP66 Waterproof |
Load capacity | 16Tons |
Solar panel | Mono 2V 120mAH |
Battery | Ni-MH 1.2V 600mAH.The Li-battery/Capacity optional if needed |
Working life | >3years |
Working environments | -20℃~+70℃ |
Package | 400*275*280MM/60pcs/CTNS |
Gross Weight | 19KG/CTNS |
Certificates | CE RoHS |
Remark | 2.4G/ GPS Flashing available |
Application
Solar-led road markers are mainly used for roads, expressways, paths, crosswalks, etc. There are 5 colors for road markers.
The amber solar pavement markers are the most popular for the middle or edge of the road, path.
The white solar studs are placed between the two lanes or between the lanes of the highway.
Many engineering companies install red solar pavement markers along the hard shoulders of highways.
The green road studs indicate where the intersection connects or leaves the highway,usually called a highway branch.

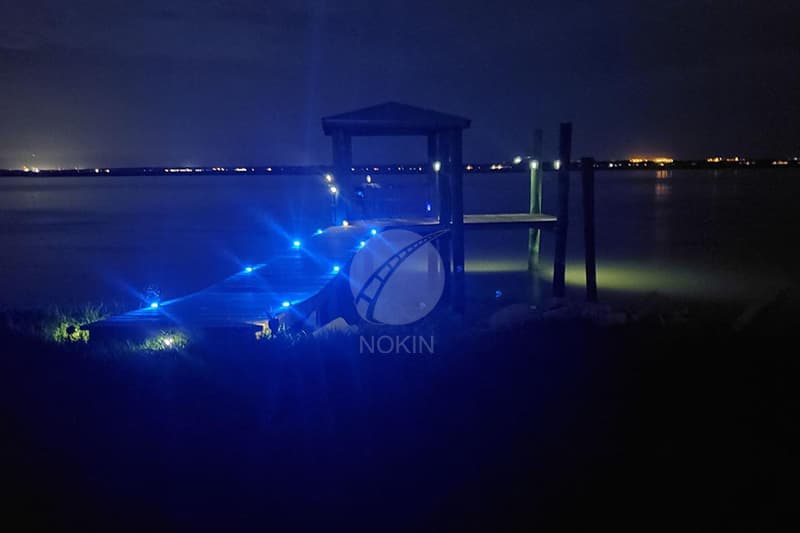

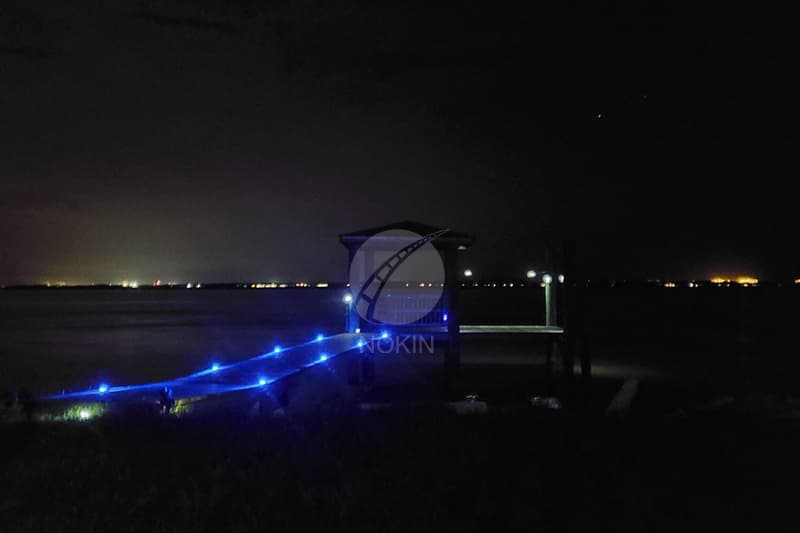

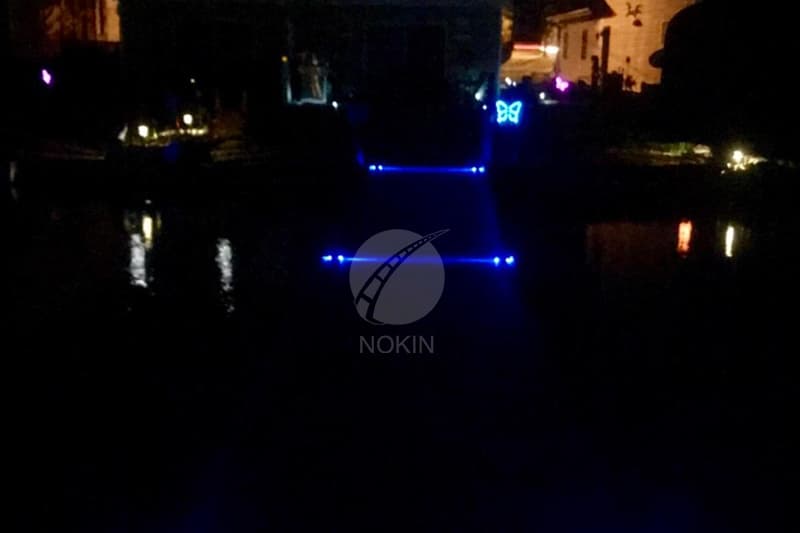

You can use the blue road studs for emergency services.
