road stud for path heavy duty light

Surface-mounted aluminum cat eye road is with spike looking like a foot, it will be better to fix on-road than traditional cats eye reflective road stud without a spike, what is more, it is with mono solar panel and battery, which can actively emit light at night to better mark the outline and direction of the road, so as to be better seen by the driver and improve the safety of night driving. More and more people purchase cat-eye solar road markers for different projects.

Share:
Content
road stud for path heavy duty light
road stud for path heavy duty light



Surface-mounted aluminum cat eye road is with spike looking like a foot, it will be better to fix on-road than traditional cats eye reflective road stud without a spike, what is more, it is with mono solar panel and battery, which can actively emit light at night to better mark the outline and direction of the road, so as to be better seen by the driver and improve the safety of night driving. More and more people purchase cat-eye solar road markers for different projects.



road stud for path heavy duty light
road stud for path heavy duty light



Feature

  • The cat-eye road stud shell adopts a novel design scheme, with feet under the bottom of the shell, which can be more strongly adsorbed to the ground when doing the surface-mounted installation.
  • With a mono solar panel and high-quality Ni-MH battery, this solar cat’s eye road stud can automatically light up every night and automatically light off during the day.
  • The warning effect is from the active light emission of the LED light source and the passive reflection of the reflector. Under the illumination of the LED light source, the visible distance can reach at least 500 meters, providing road safety. Even if the solar energy system fails, the light-emitting sheet can still emit light under the illumination of the vehicle light, which serves as a warning and guiding the driver.
  • Adopt full sealing glue technology, high compression resistance, waterproof performance IP66. It can still work well even on roads with plenty of rain.
  • With high-quality aluminum and high-strength PC cover, the compressive capacity of solar cat’s eye road stud lights can reach 20 tons.
  • Five colors for reflectors optional(Yellow, White, Red, Blue, Green), You can choose them according to different places.
  • There are steady on or flashing options for the work model. This solar cat eye road stud can be 2.4G or GPS function for flashing type, in this case, all of the cat-eye solar road markers will be flashing at the same time.



road stud for path heavy duty light
road stud for path heavy duty light



Application

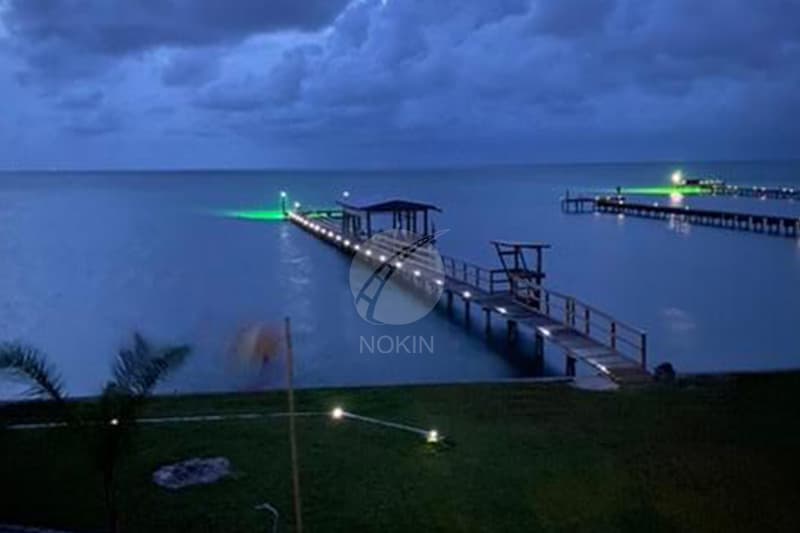

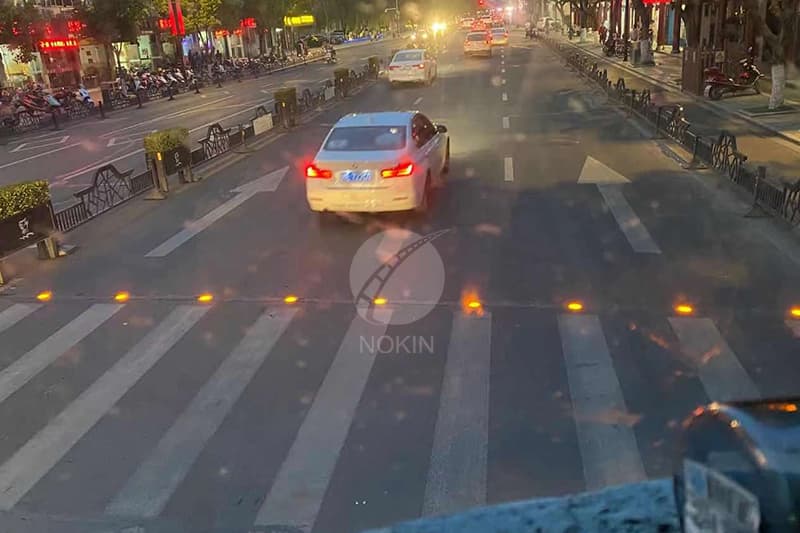

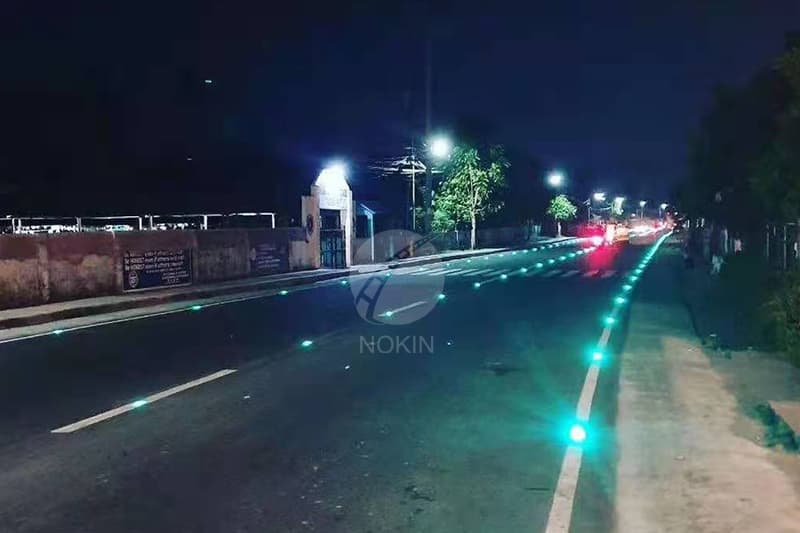

The cat eyes solar road stud is working originally for a highway to mark the outlet of the road. But now, sometimes many people also use them for airports, ports, lanes, gardens, squares, bridges, etc.



Installation of cat eye road stud

1.Clean up the surface of the road. A clean road is more conducive to the adsorption of glue on the ground.

2.Determine the hole location based on the cat eye road stud and the size of Spike.

3.Scrape the glue on the bottom of the road stud, aim at the hole position, then press the cat eye road stud light on the road.

4.Using screws to fix the road marker again. Then finished.



road stud for path heavy duty lightroad stud for path heavy duty light
road stud for path heavy duty light





LED Quantities 3leds only for the only side 6leds for double sides
LED Source type F5 LED Chips
Color Amber, Red, Green, Blue, White optional
Materials Die-cast aluminum body+High strength reflector
Dimension 119*129*75mm
Solar panel Mono solar panel, 2.5V 120mAH
Battery Ni-MH battery 1.2V 600mAH, the Li-battery or capacitor available if needed
Working model Steady on(last 40hours) or Flash (last 300Hrs)
Visual distance >500meters
IP Grade IP66
Working life >3years
Compressive capacity >20Tons
Working environments -20℃~+70℃
Inner Package 136*148*98mm/pcs
Certification CE RoHS Compliance
