solar pavement light bike path national standard cast aluminum reflective

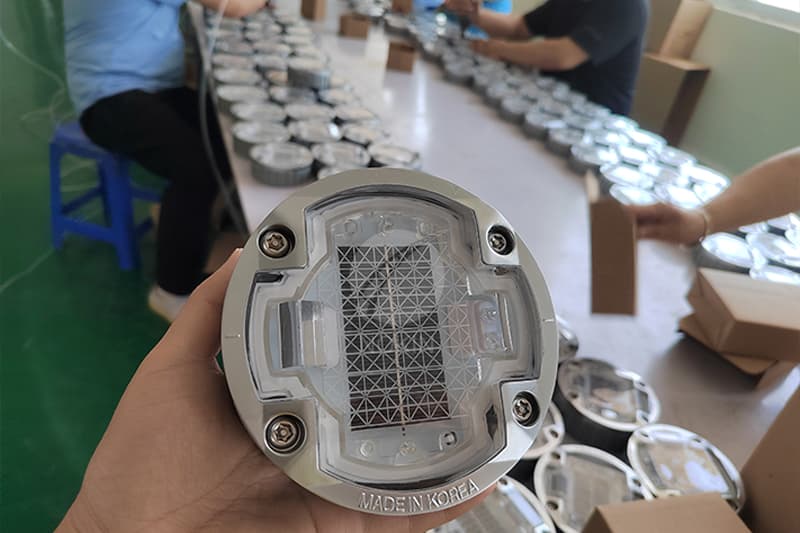

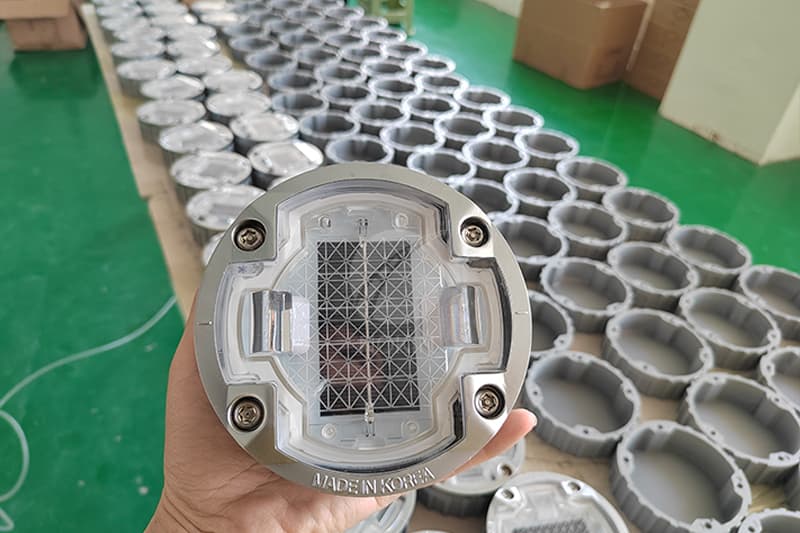

The NK-X6 has 6 super flux LED`s that can be supplied as constant or flashing in all colours.
With a solid construction and a 10 ton compression capacity we think they are one of the best in our available range for life longevity, viewing distance and charging ability in low light conditions.
Our NK-X6 Road Studs and driveway reflectors are available in White, Yellow, Red, Blue and Green. With quality reflectors they comply with Euro road lighting standards and meet ASTM standards.
They are ideal for pedestrian crossings, speed humps and as solar post lights. Available in 4 or 6 LED configuration with static constant or flashing option.

Share:
Content
solar pavement light bike path national standard cast aluminum reflective
solar pavement light bike path national standard cast aluminum reflective





The NK-X6 has 6 super flux LED`s that can be supplied as constant or flashing in all colours.
With a solid construction and a 10 ton compression capacity we think they are one of the best in our available range for life longevity, viewing distance and charging ability in low light conditions.
Our NK-X6 Road Studs and driveway reflectors are available in White, Yellow, Red, Blue and Green. With quality reflectors they comply with Euro road lighting standards and meet ASTM standards.
They are ideal for pedestrian crossings, speed humps and as solar post lights. Available in 4 or 6 LED configuration with static constant or flashing option.



solar pavement light bike path national standard cast aluminum reflective
solar pavement light bike path national standard cast aluminum reflective



Solar road studs are flashing solar cell powered LED low-maintenance lighting devices that delineate road edges and centrelines. Embedded in the road surface, they are an electronic improvement on the traditional cat’s eyes and raised pavement marker in that they may give drivers a larger reaction window.

Averaging about 100 mm square or 100 mm diameter and about 40 mm thick, units are extremely robust to avoid damage by passing vehicles, and are normally constructed of engineering plastics and polycarbonates. Use of solar road studs reduces the necessity of headlight main beams and the accompanying hazard of dazzling oncoming drivers. They are also more visible in rain and fog conditions where the old type retroreflectors and road markings are problematic. The solar cells charge batteries or capacitors during sunlit hours, over which period the flashing LEDs are turned off by a photoswitch.The price of each road stud is 1000-1500 per piece.





solar pavement light bike path national standard cast aluminum reflective
solar pavement light bike path national standard cast aluminum reflective

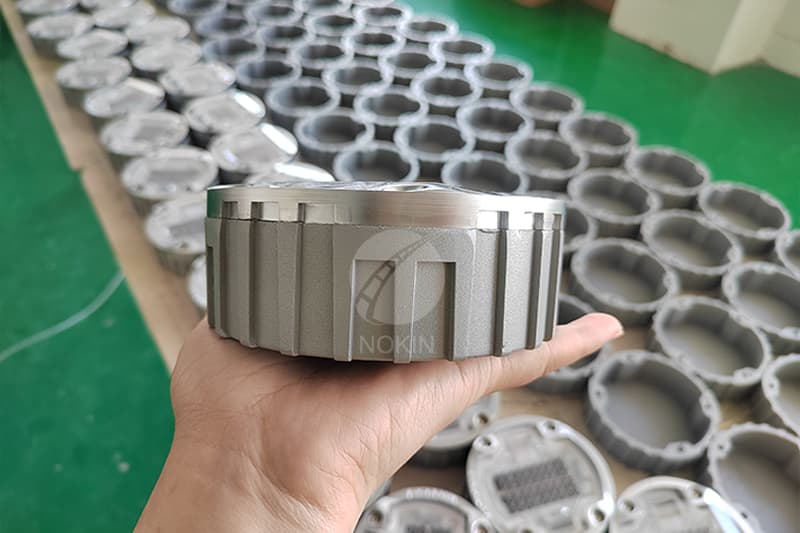

Body material Cast Aluminum
Waterproof IP68
Power supply High Efficient Solar Panel 2.5V/120mA/0.3W for lithium battery
Battery Lithium battery 5V/80mA
Visual distance 1000m(approx)
Life span 5-8years
LED Ultra bright diameter 5mm(6pcs) ;super brightness >5000mcd
Load capacity >80T (can be installed in the middle of road)
LED color Red,Yellow,Green,Blue,White
Size Dia  123*47mm
working mode Recharging at day and working automatically at night
Working temperature (-25 °C~ + 75°C)
Weight 880g
Flashing model Flashing  or constant
Certificate CE,ROHS,FCC,IP68,ISO,Load capacity test report
Working hours NI-MH:145hrs for blinking model.40hrs for constant model, after fully charged
Lithium battery: 300hrs for blinking,72hrs for constant, after fully charged





solar pavement light bike path national standard cast aluminum reflective
solar pavement light bike path national standard cast aluminum reflective





NOKIN solar powered road studs suit a wide variety of requirements, with NK-X6 surface mounted products.

Driving at night can be particularly hazardous, with over fatalities every day, many more serious injuries are possible especially in areas where street lighting is either unavailable, not cost effective or environmentally not possible.

NOKIN provides a sustainable solution with innovative solar powered Intelligent Road Studs helping to reduce accident at regional rail crossing, intersection etc.

This smart, safe and sustainable option for providing guidance and hazard warning to drivers during the hours of darkness, reducing accident rates by over 70%, (UK Study) reducing environmental impact and saving costs.
