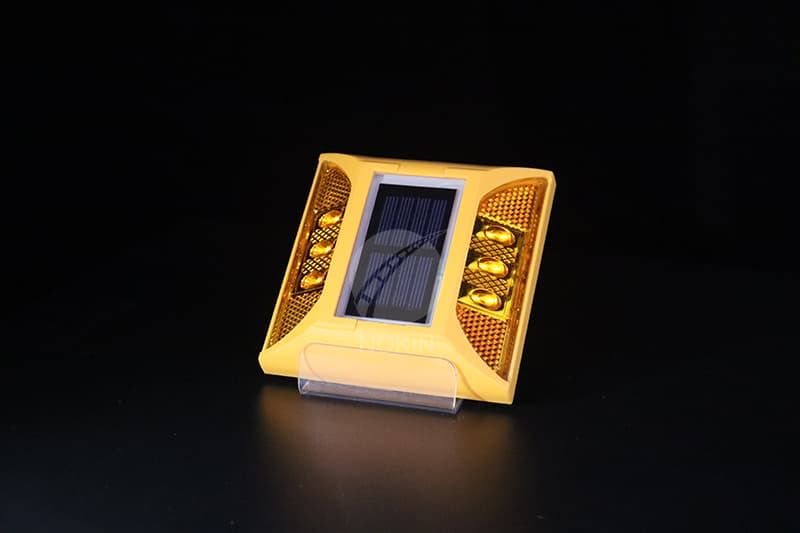

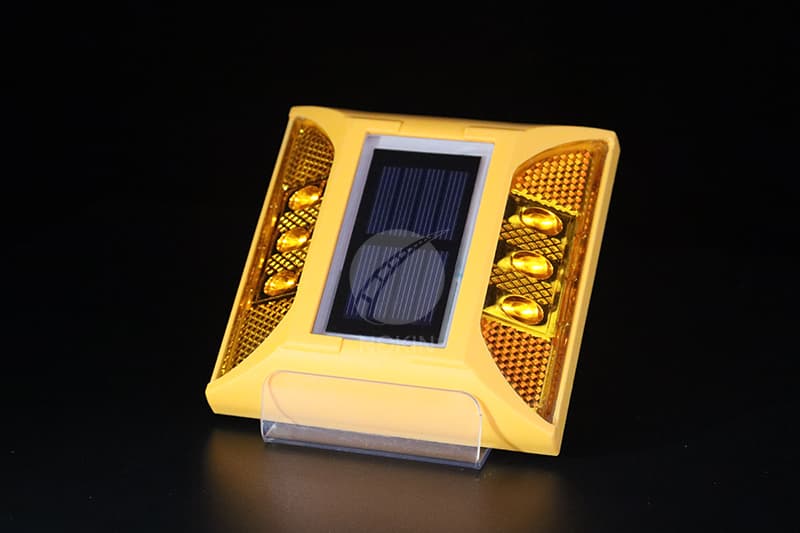

solar road marker for Pedestrian Crossing Installation
Solar Road Stud is suitable for low and medium speed road warning lane
Depending on the actual road conditions, you can select a continuous producto, single or multiple products, combined to install them on the road pavement either on one or both sides.
At night, its signaling funtion provides drivers of motor vehicles with orientation instructions, as well as drivers of non-motorized vehicles and pedestrians. In this way, it greatly improves road safety at night.
Installation steps
- Check if the solar panel charges and discharges normally.
- Identify the place for installation.
- Clean road surfaces.
- Clean the underside of the solar headlamp and use epoxy glue to stick it to the ground.
- Wait 8 hours for it to dry before activating the solar pickup.
Solar Road Stud is suitable for low and medium speed road warning lane
Depending on the actual road conditions, you can select a continuous producto, single or multiple products, combined to install them on the road pavement either on one or both sides.
At night, its signaling funtion provides drivers of motor vehicles with orientation instructions, as well as drivers of non-motorized vehicles and pedestrians. In this way, it greatly improves road safety at night.
Body material
|
ABS
|
Power supply
|
Solar panel( monocrystalline 2.5V/0.25W)
|
Battery
|
NI-MH1.2V/600mA or lithium battery
|
Working model
|
constant or blinking
|
Waterproof
|
IP68
|
Load capacity
|
>30T
|
Quality
|
ASTM D4280 & EN1463-1 standard
|
Visual distance
|
> 800m
|
