Very Popular NOKIN IL300 Solar Road Studs

During the day, solar panels absorb sunlight and convert solar energy into electrical energy, which is stored in energy storage devices (batteries or capacitors). At night, the electrical energy in the energy storage devices is automatically converted into light energy and emitted by LEDs. Bright light outlines the road and induces the driver’s sight.

Share:
Content

This Flush Type Solar Road Stud with 6 safety locks that sell very well in the Philippines, we have two sizes, dia 143*47mm and dia 150*50mm, and two working models can be chosen from, flashing and constant light. NOKIN is a leading solar road stud manufacturer in China since 2001, we can provide OEM and ODM service, welcome to contact us to get more info. about more solar road studs!

Very Popular NOKIN IL300 Solar Road Studs
Very Popular NOKIN IL300 Solar Road Studs

SPECIFICATION:

Body material : Aluminum Alloy+PC cover
Power supply: Solar panel(Monocrystalline 5V /80MA)
Battery: Lithium battery 1000MAH*3.2V
LED: Ultra bright diameter 8mm*6PCS
LED Color: White Green Red Yellow Blue
Flashing model:  flashing  or constant
Working hours: 140 hrs for flashing modes,40hrs for constant modes
Visual distance: 1000m(approx)
Waterproof: IP68
Load Capacity >30T(can be installed in the middle of road)
Size: φ150*50mm / φ143*47mm
Package:  1pcs/box; 30pcs/ctn; Weight: 38.5kgs; Carton size: 80*33*19cm

(1pcs/box; 30pcs/ctn; Weight: 84.88bs; Carton size: 31.50″*12.99″*7.48″)

Life span:  more than 5 years
Working Temperature -20 °C~ + 70°C
waterproof IP68
Very Popular NOKIN IL300 Solar Road Studs
Very Popular NOKIN IL300 Solar Road Studs
Working Principle of Solar Road Stud Light
During the day, solar panels absorb sunlight and convert solar energy into electrical energy, which is stored in energy storage devices (batteries or capacitors). At night, the electrical energy in the energy storage devices is automatically converted into light energy and emitted by LEDs. Bright light outlines the road and induces the driver’s sight. Solar road studs will start automatically to flash when night falls or with the onset of inclement weather. The bright flashing LEDs are highly effective at getting the attention of drivers much earlier than conventional road studs.

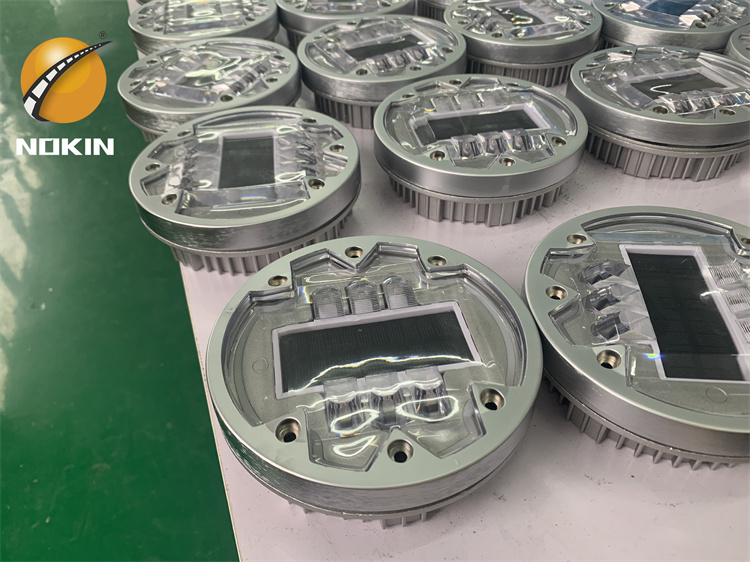

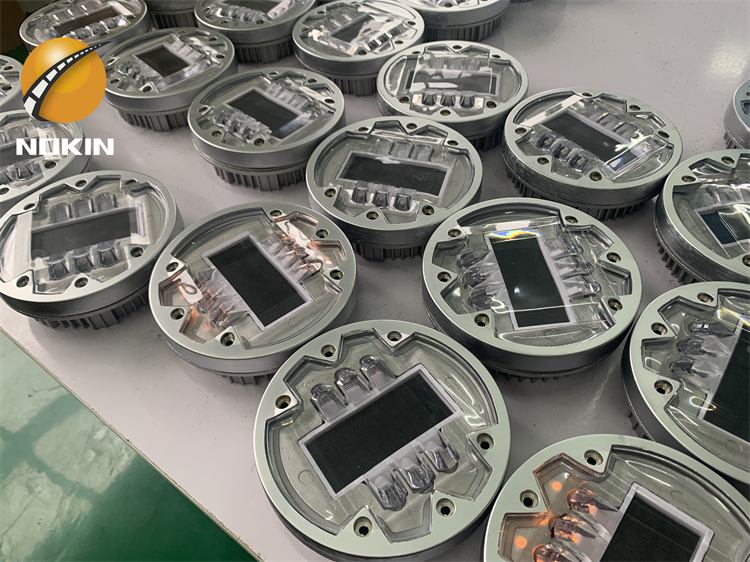

The base of this solar road stud is made of cast aluminum, and the surface is made of plastic spraying technology.
The product has a rubber bottom pad to increase the service life
The shell is made of reinforced PC material, which has excellent impact resistance and heat stability.
Loading capacity of more than 30 tons, can be used in the middle of the road.
These solar studs are very popular in the Philippines.
